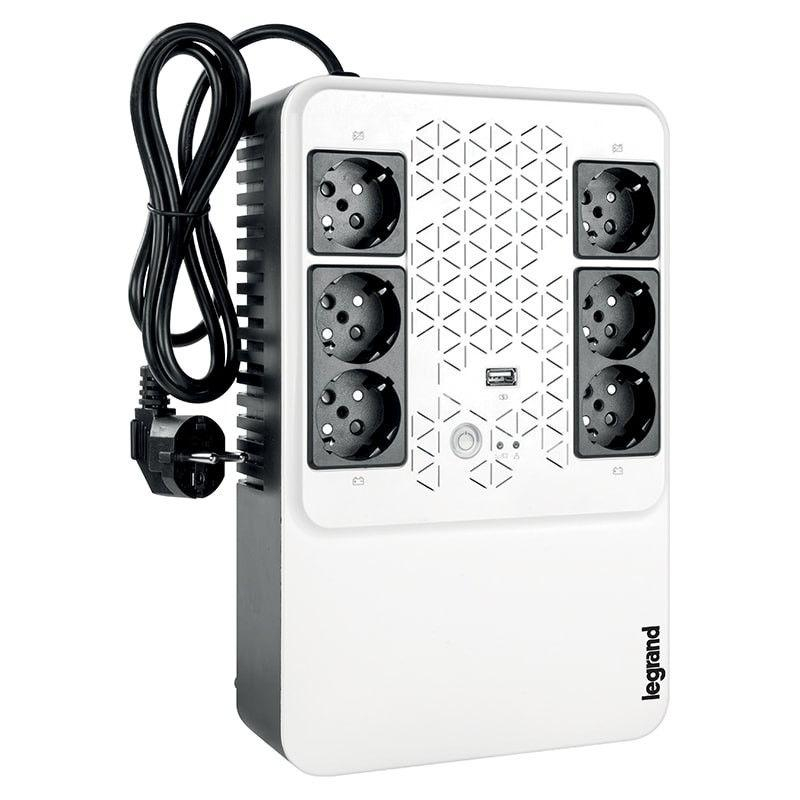

UPS Legrand MULTIPLUG 600, 360W, USB, Compact

AC Outlet Types: Type F

AC Outlets Quantity: 6 AC outlet(s)

Audible Alarm(s): Yes

Auto Shut-off: No

Automatic Voltage Regulation (AVR): Yes

Battery Capacity: 7 Ah

Battery Recharge Time: 6 h

Battery Technology: Sealed Lead Acid (VRLA)

Battery Voltage: 12 V

Certification: EN 62040-1, EN 62040-2

Depth: 296 mm

Efficiency: 96%

Harmonized System (HS) Code: 85078000

Height: 89.5 mm

Input Frequency: 45/65 Hz

Input Operation Voltage (max): 280 V

Input Operation Voltage (min): 170 V

Master (outer) Case Gross Weight: 5.9 kg

Master (outer) Case Height: 290 mm

Master (outer) Case Length: 390 mm

Master (outer) Case Width: 158 mm

Noise Level: 40 dB

Number Of Input Phases: 1

Number Of Output Phases: 1

Number Of Type F Outputs: 6

Operating Relative Humidity (H-H): 0 - 95%

Operating Temperature (T-T): 0 - 40 °C

Output Frequency: 50/60 Hz

Output Frequency Regulation: 1 Hz

Output Operation Voltage (max): 253 V

Output Operation Voltage (min): 207 V

Output Power: 360 W

Output Power Capacity: 0.6 kVA

Output Power Factor: 0.6

Output Voltage Regulation: 10%

Package Depth: 5.03 mm

Package Height: 89.5 mm

Package Weight: 5.61 kg

Package Width: 190 mm

Pallet Net Height: 104 cm

Pallet Net Length: 100 cm

Pallet Net Weight: 318.6 kg

Pallet Net Width: 120 cm

Potential-free Output: No

Power Plug: Type F

Power Protection Features: Overcharge, Overdischarge, Overload, Short circuit

Power Source Type: AC

Product Colour: Black, White

Products Per Master (outer) Case: 1 pc(s)

Products Per Pallet: 54 pc(s)

Surge Protection: Yes

Typical Backup Time At Full Load: 15 min

UPS Topology: Line-Interactive

USB 2.0 Ports Quantity: 1

USB Port Type: USB Type-A

Waveform: Sine

Weight: 5 kg

Width: 190 mm

Capacitate Rack:: None

Capacitate Putere UPS: 360W

Ecran LCD:: Nu

Form Factor: Compact

Port USB: Da

Tibru: 0

Tip UPS:: Line Interactive
