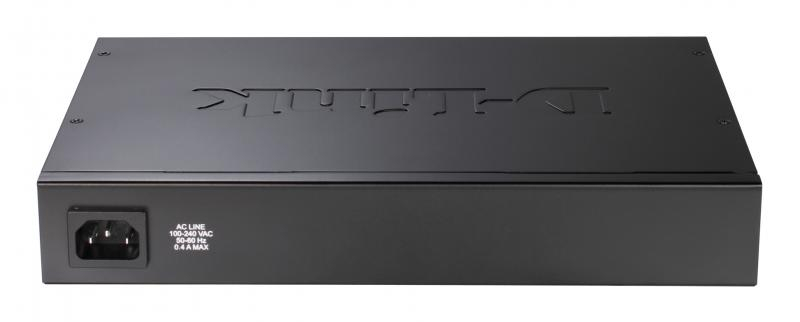

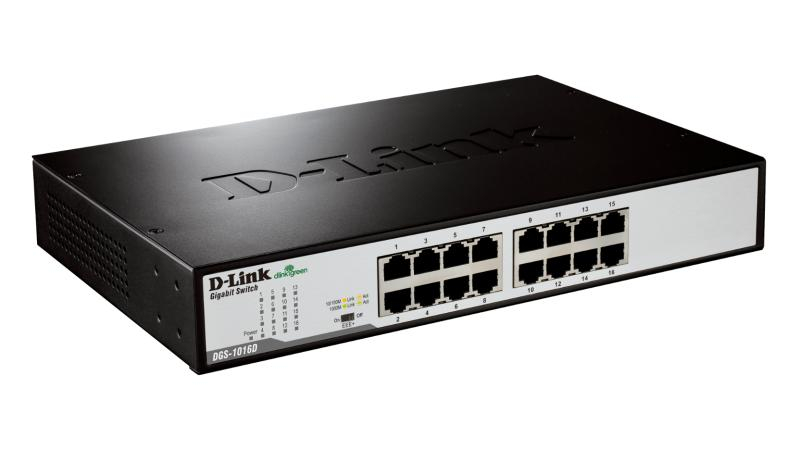

Switch D-Link DGS-1016D, 16 port, 10/100/1000 Mbps

10G Support: No

AC Input Frequency: 50 - 60 Hz

AC Input Voltage: 100 - 240 V

Active Link Detection: Yes

Auto MDI/MDI-X: Yes

Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)

Broadcast Storm Control: Yes

Cable Types Supported: Cat3, Cat4, Cat5, Cat5e

Certification: cUL/ULCE LVDCCCCBBSMI

Copper Ethernet Cabling Technology: 10BASE-T, 100BASE-T, 1000BASE-T

Depth: 125 mm

Electromagnetic Compatibility: ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC

Flow Control Support: Yes

Form Factor: 1U

Forwarding Rate: 23.81 Mpps

Full Duplex: Yes

Harmonized System (HS) Code: 85176990

Heat Dissipation: 34.3 BTU/h

Height: 44 mm

Housing Material: Metal

Input Current: 0.2 A

Installed SFP+ Modules Quantity: 0

Jumbo Frames: 10000

Jumbo Frames Support: Yes

LAN Port Type: Gigabit

LED Indicators: Activity, Link, Power, Speed

MAC Address Auto-aging Supported: Yes

MAC Address Auto-learning Supported: Yes

MAC Address Table: 8000 entries

Maximum Data Transfer Rate: 1 Gbit/s

Mean Time Between Failures (MTBF): 1882372 h

Networking Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Noise Level: 0 dB

Number Of Queues: 8

Operating Relative Humidity (H-H): 0 - 95%

Operating Temperature (T-T): 0 - 40 °C

Package Depth: 328 mm

Package Height: 108 mm

Package Weight: 1.71 kg

Package Width: 180 mm

Packet Buffer Memory: 0.5 MB

Packet Forwarding Rate (1 Gbps): 14880 pps

Packet Forwarding Rate (10 Mbps): 1488000 pps

Packet Forwarding Rate (100 Mbps): 148800 pps

Pallet Gross Length: 110 cm

Pallet Gross Weight (air): 295.7 kg

Pallet Gross Weight (sea): 480.3 kg

Pallet Gross Width: 120 cm

Pallet Height (air): 121.2 cm

Pallet Height (sea): 193 cm

Power Connector: AC-in jack

Power Consumption (max): 10.07 W

Power Consumption (typical): 11.7 W

Power Over Ethernet (PoE): No

Power Supply Included: Yes

Product Colour: Black, Silver

Products Per Pallet (air): 150 pc(s)

Products Per Pallet (sea): 250 pc(s)

Products Per Shipping (inner) Case: 5 pc(s)

Quality Of Service (QoS) Support: Yes

Rack Mounting: Yes

Shipping (inner) Case Gross Weight: 9.21 kg

Shipping (inner) Case Height: 35.9 cm

Shipping (inner) Case Length: 57.2 cm

Shipping (inner) Case Net Weight: 8.54 kg

Shipping (inner) Case Width: 19.7 cm

Stackable: Yes

Storage Relative Humidity (H-H): 0 - 95%

Storage Temperature (T-T): -10 - 70 °C

Store-and-forward: Yes

Switch Type: Unmanaged

Switching Capacity: 32 Gbit/s

Weight: 1.02 kg

Width: 280 mm

Management: Nu

Montare In Rack: Nu

PoE: Nu

Porturi RJ 45: 11-18

Porturi SFP: N/A

Tibru: 1.5

Viteza Transfer: Gigabit
