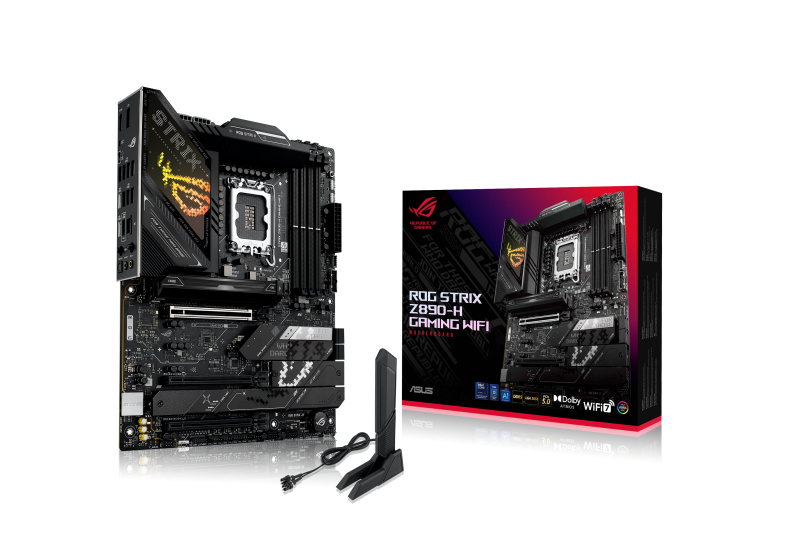

Placa de baza ASUS ROG STRIX Z890-H GAMING WIFI, LGA 1851, DDR5, ATX

12V Power Connector: Yes

1st M.2 Highest PCI Express Generation: 5

1st M.2 Largest Key Size: 22110

2nd M.2 Highest PCI Express Generation: 4

2nd M.2 Largest Key Size: 2580

3rd M.2 Highest PCI Express Generation: 4

3rd M.2 Largest Key Size: 22110

4th M.2 Highest PCI Express Generation: 4

4th M.2 Largest Key Size: 2280

ATX Power Connector (24-pin): Yes

Antenna Included: Yes

Audio Chip: Realtek ALC1220P

Audio Output Channels: 7.1 channels

BIOS Memory Size: 256 Mbit

BIOS Type: UEFI AMI

Bluetooth Version: 5.4

CPU Fan Connector: Yes

Cables Included: SATA

Chassis Intrusion Connector: Yes

Compatible Processor Series: Intel Core Ultra (Series 2)

Component For: PC

DVI-D Ports Quantity: 0

Depth: 244 mm

DisplayPorts Quantity: 1

ECC сompatibility: Non-ECC

EPS Power Connector (8-pin): Yes

Ethernet LAN: Yes

Ethernet LAN (RJ-45) Ports: 1

Ethernet Interface Type: 5 Gigabit Ethernet

Front Panel Audio Connector: Yes

Front Panel Connector: Yes

HDMI Ports Quantity: 1

Maximum Internal Memory: 256 GB

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Microphone In: Yes

Motherboard Chipset: Intel Z890

Motherboard Chipset Family: Intel

Motherboard Form Factor: ATX

Number Of CPU Fan Connectors: 2

Number Of EPS Power Connectors (8-pin): 2

Number Of HDDs Supported: 4

Number Of M.2 (M) Slots: 4

Number Of SATA II Connectors: 0

Number Of SATA III Connectors: 4

Number Of SATA Connectors: 0

Number Of Chassis Fan Connectors: 5

Number Of Memory Slots: 4

Number Of Storage Drives Supported: 8

Number Of Temperature Sensor Headers: 1

On-board Graphics Card: No

PCI Express X16 (Gen 4.x) Slots: 2

PCI Express X16 (Gen 5.x) Slots: 1

Package Depth: 273 mm

Package Height: 68 mm

Package Weight: 2.52 kg

Package Width: 353 mm

Parallel Processing Technology Support: Not supported

Processor Manufacturer: Intel

Processor Socket: LGA 1851 (Socket V1)

Product Colour: Black

RAID Levels: 0, 1, 5, 10

RAID Support: Yes

S/PDIF Out Port: Yes

Supported Memory Types: DDR5-SDRAM

Supported Processor Sockets: LGA 1851

Supported Storage Drive Interfaces: M.2, SATA III

Supported Storage Drive Types: HDD & SSD

Thunderbolt Headers: 1

Top Wi-Fi Standard: Wi-Fi 7 (802.11be)

USB 2.0 Connectors: 2

USB 2.0 Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 0

USB 3.2 Gen 2x2 Type-C Ports Quantity: 2

USB 3.2 Gen 2x2 Connectors: 1

Unbuffered Memory: Yes

VGA (D-Sub) Ports Quantity: 0

Wi-Fi: Yes

Wi-Fi Standards: Wi-Fi 7 (802.11be)

WiFi-AP Antenna Jack: 1

Width: 305 mm

Windows Operating Systems Supported: Windows 11

MSATA Ports Quantity: 0

Bluetooth: Da

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: ATX

Gaming: Da

HDMI: Da

Memorie Maxima: 256 GB

Model Chipset: Z890

Numar Sloturi Memorie: 4

RJ-45 LAN: 1

Sloturi M.2: 4

Soclu Procesor: Socket 1851

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR5

Tip Slot Interfata Grafica: PCIe 5.0 x16

USB Type C: N/A

Wireless: Da
