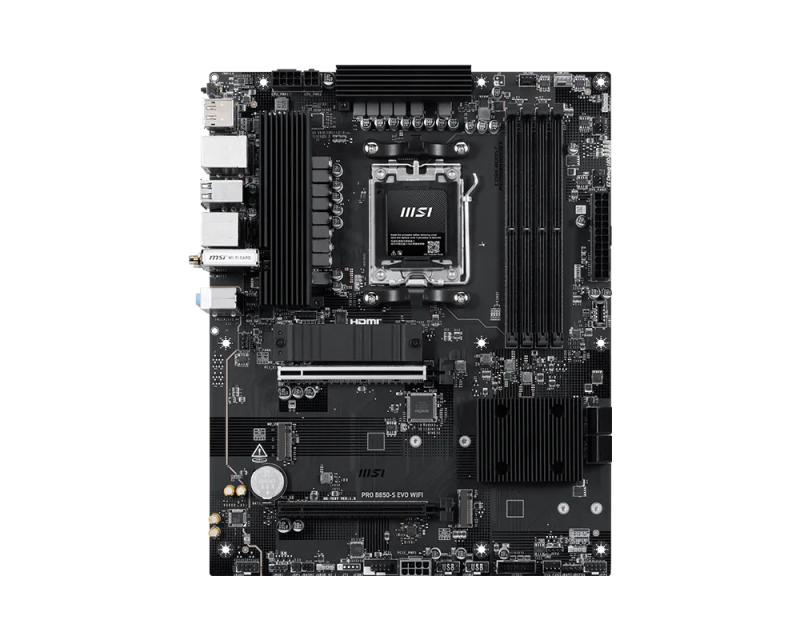

Placa de baza MSI PRO B850-S EVO WIFI, Socket AM5, DDR5, ATX

1st M.2 Highest PCI Express Generation: 5

1st M.2 Largest Key Size: 2280

2nd M.2 Highest PCI Express Generation: 4

2nd M.2 Largest Key Size: 22110

3rd M.2 Highest PCI Express Generation: 4

3rd M.2 Largest Key Size: 2280

ACPI Version: 6.5

Antenna Included: Yes

Audio Chip: Realtek ALC897

Audio Connector: Yes

Audio Output Channels: 7.1 channels

BIOS Memory Size: 512 Mbit

BIOS Type: UEFI AMI

Bluetooth Version: 5.4

CPU Fan Connector: Yes

Cables Included: SATA

Chassis Intrusion Connector: Yes

Compatible Processor Series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component For: PC

DVI-D Ports Quantity: 0

Depth: 304.8 mm

DisplayPort Version: 1.4

DisplayPorts Quantity: 1

ECC сompatibility: Non-ECC

Ethernet LAN: Yes

Ethernet LAN (RJ-45) Ports: 1

Ethernet Interface Type: 2.5 Gigabit Ethernet

Front Panel Audio Connector: Yes

Front Panel Connector: Yes

HDMI Ports Quantity: 1

HDMI Version: 2.1

Maximum Internal Memory: 256 GB

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Motherboard Chipset: AMD B850

Motherboard Chipset Family: AMD

Motherboard Form Factor: ATX

Number Of COM Connectors: 1

Number Of CPU Fan Connectors: 1

Number Of HDDs Supported: 4

Number Of M.2 (M) Slots: 3

Number Of SATA II Connectors: 0

Number Of SATA III Connectors: 4

Number Of SATA Connectors: 0

Number Of Memory Slots: 4

Number Of Storage Drives Supported: 7

On-board Graphics Card: No

PCI Express X1 (Gen 3.x) Slots: 1

PCI Express X16 (Gen 4.x) Slots: 1

PCI Express X4 (Gen 4.x) Slots: 1

Parallel Processing Technology Support: Not supported

Power Fan Connector: Yes

Power Source Type: ATX

Processor Manufacturer: AMD

Processor Socket: Socket AM5

Product Colour: Black

RAID Levels: 0, 1, 10

RAID Support: Yes

RGB LED Pin Header: Yes

Screws Included: Yes

Supported Memory Clock Speed (max): 8200 MHz

Supported Memory Clock Speeds: 8200,5600,4800 MHz

Supported Memory Types: DDR5-SDRAM

Supported Storage Drive Interfaces: M.2, SATA

Supported Storage Drive Types: HDD & SSD

System Management BIOS (SMBIOS) Version: 3.7

TPM Connector: Yes

Top Wi-Fi Standard: Wi-Fi 7 (802.11be)

Total Number Of SATA Connectors: 4

USB 2.0 Connectors: 4

USB 2.0 Ports Quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 1

Unbuffered Memory: Yes

VGA (D-Sub) Ports Quantity: 0

Wi-Fi: Yes

Wi-Fi Standards: Wi-Fi 7 (802.11be)

Width: 243.8 mm

Bluetooth: Da

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: ATX

Gaming: Nu

HDMI: Da

Memorie Maxima: 256 GB

Model Chipset: B850

Numar Sloturi Memorie: 4

RJ-45 LAN: 1

Sloturi M.2: 3

Soclu Procesor: Socket AM5

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR5

Tip Slot Interfata Grafica: PCIe 4.0 x16

USB Type C: Da

Wireless: Da
