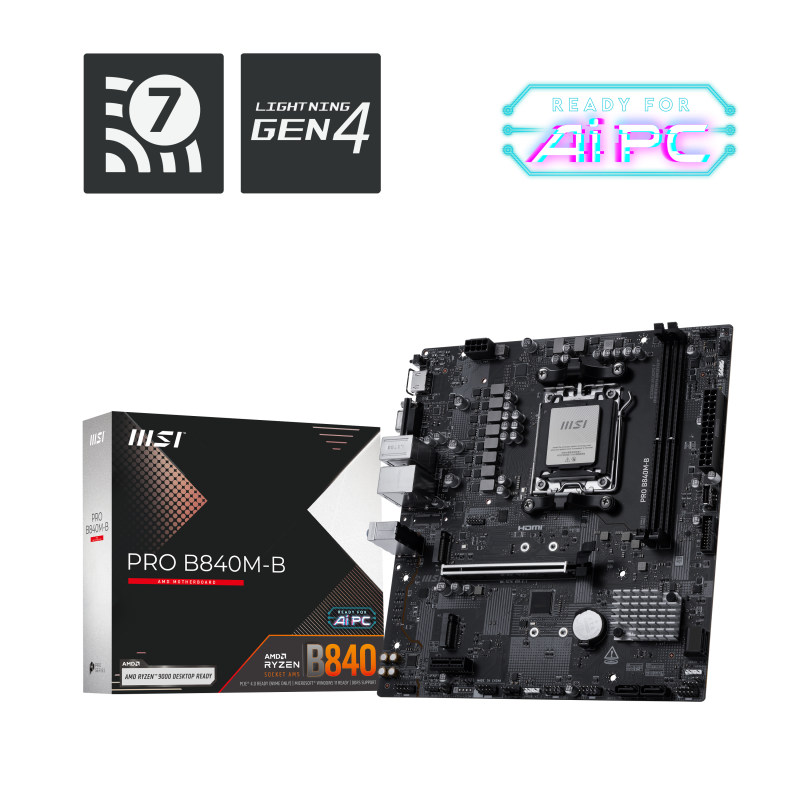

Placa de baza MSI PRO B840M-B, Socket AM5, DDR5, Micro-ATX

1st M.2 Highest PCI Express Generation: 4

1st M.2 Largest Key Size: 2280

2nd M.2 Highest PCI Express Generation: 4

2nd M.2 Largest Key Size: 2280

ACPI Version: 6.5

Audio Chip: Realtek ALC897

Audio Output Channels: 7.1 channels

BIOS Memory Size: 256 Mbit

BIOS Type: UEFI AMI

Compatible Processor Series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component For: PC

DVI-D Ports Quantity: 0

Depth: 243.8 mm

ECC сompatibility: Non-ECC

Ethernet LAN: Yes

Ethernet LAN (RJ-45) Ports: 1

Ethernet Interface Type: 2.5 Gigabit Ethernet

HDMI Ports Quantity: 1

HDMI Version: 2.1

LAN Controller: Realtek RTL8125D

Maximum Internal Memory: 128 GB

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Motherboard Chipset: AMD B840

Motherboard Chipset Family: AMD

Motherboard Form Factor: micro ATX

Number Of CPU Fan Connectors: 1

Number Of HDDs Supported: 4

Number Of M.2 (M) Slots: 2

Number Of RGB LED Pin Headers: 3

Number Of SATA Express Connectors: 0

Number Of SATA II Connectors: 0

Number Of SATA III Connectors: 4

Number Of SATA Connectors: 0

Number Of Chassis Fan Connectors: 5

Number Of Memory Slots: 2

Number Of Storage Drives Supported: 6

Number Of Water Pump Connectors: 1

On-board Graphics Card: No

PCI Express X16 Slots: 2

Processor Manufacturer: AMD

Processor Socket: Socket AM5

Product Colour: Black

RAID Levels: 0, 1, 10

RAID Support: Yes

RGB LED Pin Header: Yes

Supported Memory Clock Speed (max): 8000 MHz

Supported Memory Clock Speeds: 4800,5600,8000 MHz

Supported Memory Types: DDR5-SDRAM

Supported Processor Sockets: Socket AM5

Supported Storage Drive Interfaces: M.2, Micro SATA III

Supported Storage Drive Types: HDD & SSD

System Management BIOS (SMBIOS) Version: 3.7

Total Number Of SATA Connectors: 4

USB 2.0 Connectors: 4

USB 2.0 Ports Quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 1

VGA (D-Sub) Ports Quantity: 0

Wi-Fi: No

Width: 226 mm

Windows Operating Systems Supported: Windows 11 x64

MSATA Ports Quantity: 0

Bluetooth: Nu

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: Micro-ATX

Gaming: Nu

HDMI: Da

Memorie Maxima: 128 GB

Model Chipset: B840

Numar Sloturi Memorie: 2

RJ-45 LAN: 1

Sloturi M.2: 2

Soclu Procesor: Socket AM5

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR5

Tip Slot Interfata Grafica: PCIe 4.0 x16

USB Type C: N/A

Wireless: Nu
