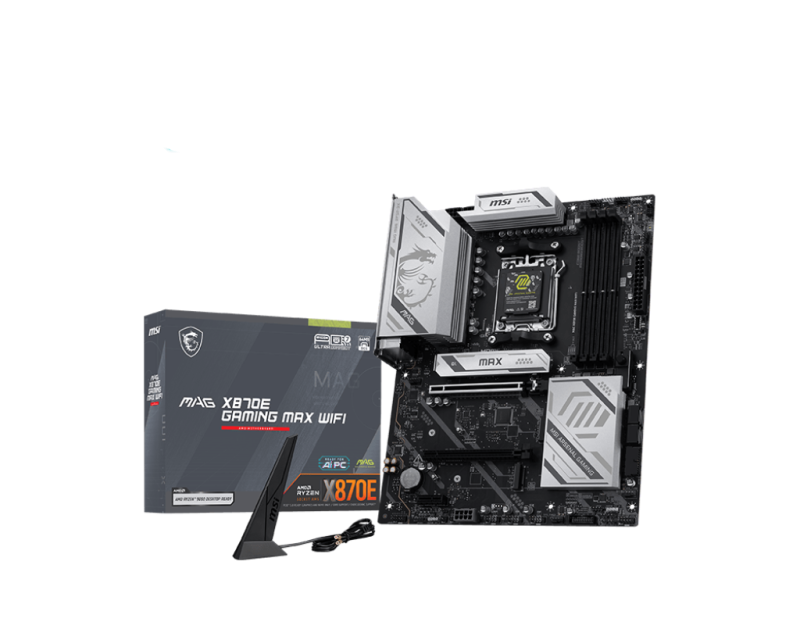

Placa de baza MSI MAG X870E GAMING MAX WIFI, Socket AM5, DDR5, ATX

1st M.2 Highest PCI Express Generation: 5

1st M.2 Largest Key Size: 2280

2nd M.2 Highest PCI Express Generation: 4

2nd M.2 Largest Key Size: 22110

3rd M.2 Highest PCI Express Generation: 4

3rd M.2 Largest Key Size: 2280

ACPI Version: 6.5

ATX Power Connector (24-pin): Yes

Audio Output Channels: 7.1 channels

BIOS Memory Size: 512 Mbit

BIOS Type: UEFI AMI

Bluetooth Version: 5.4

CPU Fan Connector: Yes

Compatible Processor Series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component For: PC

DVI-D Ports Quantity: 0

Depth: 304.8 mm

DisplayPort Version: 1.4

DisplayPorts Quantity: 2

ECC сompatibility: Non-ECC

EPS Power Connector (8-pin): Yes

Ethernet LAN: Yes

Ethernet LAN (RJ-45) Ports: 1

Ethernet Interface Type: 5 Gigabit Ethernet

HDMI Ports Quantity: 1

HDMI Version: 2.1

LAN Controller: Realtek RTL8126

Maximum Internal Memory: 256 GB

Maximum Internal Memory Supported By Processor: 256 GB

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Microphone In: Yes

Motherboard Chipset: AMD X870E

Motherboard Chipset Family: AMD

Motherboard Form Factor: ATX

Number Of HDDs Supported: 4

Number Of M.2 (M) Slots: 3

Number Of SATA II Connectors: 0

Number Of SATA III Connectors: 4

Number Of SATA Connectors: 0

Number Of Memory Slots: 4

Number Of Storage Drives Supported: 7

On-board Graphics Card: No

PC Health Monitoring: CPU, Fan, Temperature, Voltage

PCI Express X16 (Gen 3.x) Slots: 1

PCI Express X16 (Gen 4.x) Slots: 1

PCI Express X16 (Gen 5.x) Slots: 1

Processor Manufacturer: AMD

Processor Socket: Socket AM5

Product Colour: Black

RAID Support: Yes

S/PDIF Out Port: Yes

Supported Memory Clock Speed (max): 8200 MHz

Supported Memory Clock Speeds: 4800,5600,6000,6400,8200 MHz

Supported Memory Types: DDR5-SDRAM

Supported Processor Sockets: Socket AM5

Supported Storage Drive Interfaces: M.2, SATA III

Supported Storage Drive Types: HDD & SSD

System Management BIOS (SMBIOS) Version: 3.7

Top Wi-Fi Standard: Wi-Fi 7 (802.11be)

Total Number Of SATA Connectors: 4

USB 2.0 Connectors: 6

USB 2.0 Ports Quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 1

USB 3.2 Gen 2x2 Type-C Ports Quantity: 1

USB4 Gen 2x2 Ports Quantity: 1

VGA (D-Sub) Ports Quantity: 0

Width: 243.8 mm

MSATA Ports Quantity: 0

Bluetooth: Da

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: ATX

Gaming: Da

HDMI: Da

Memorie Maxima: 256 GB

Model Chipset: X870E

Numar Sloturi Memorie: 4

RJ-45 LAN: 1

Sloturi M.2: 3

Soclu Procesor: Socket AM5

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR5

Tip Slot Interfata Grafica: PCIe 5.0 x16

USB Type C: Da

Wireless: Da
