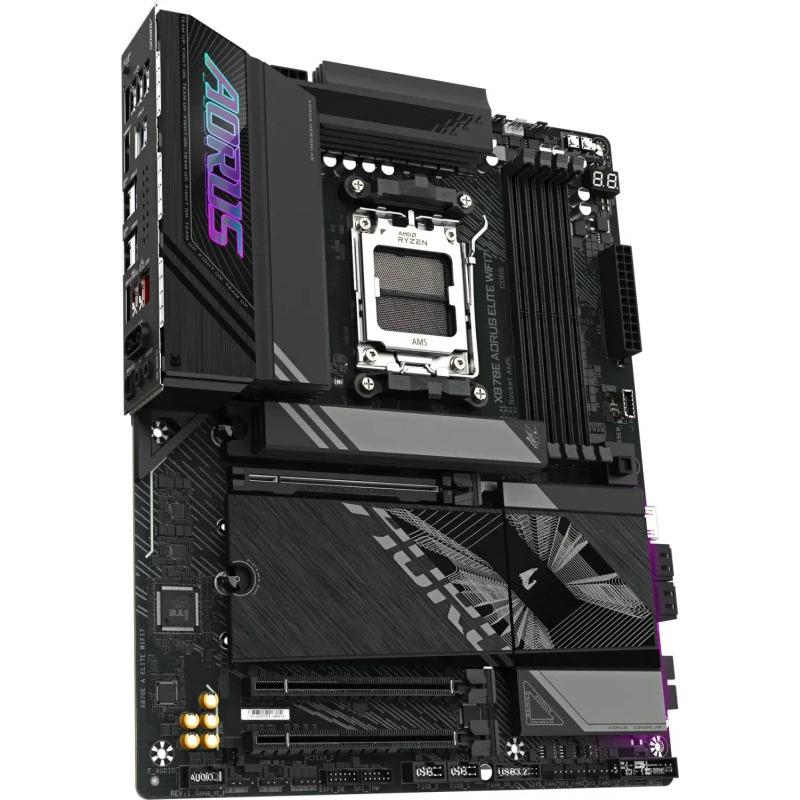

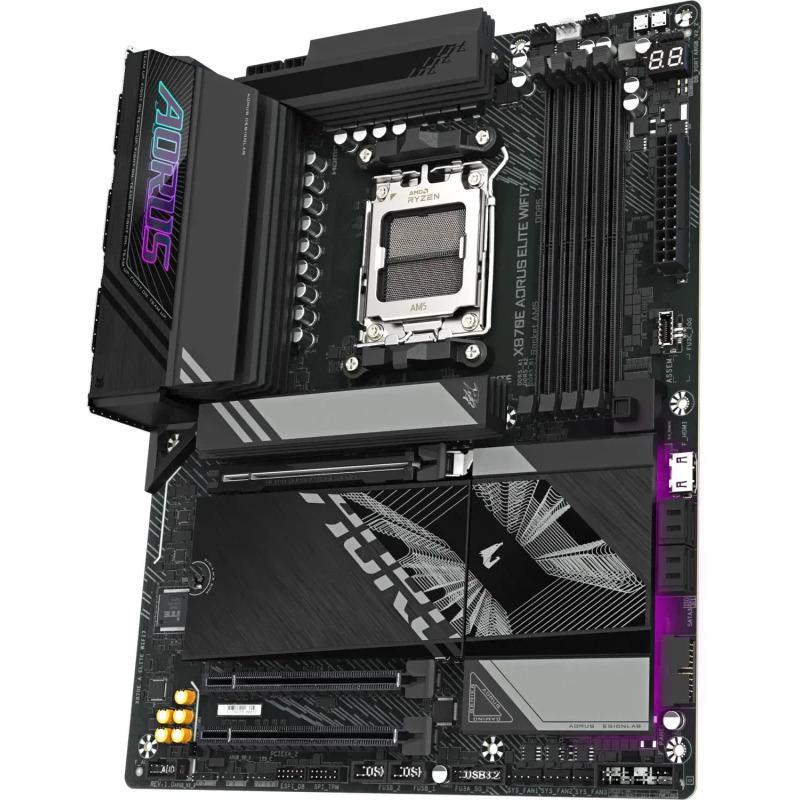

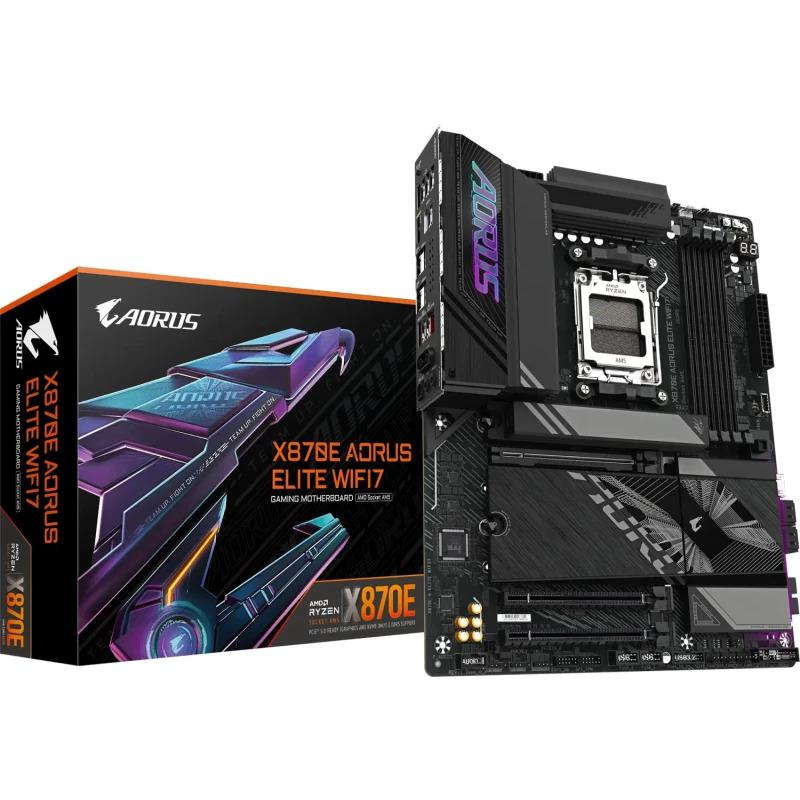

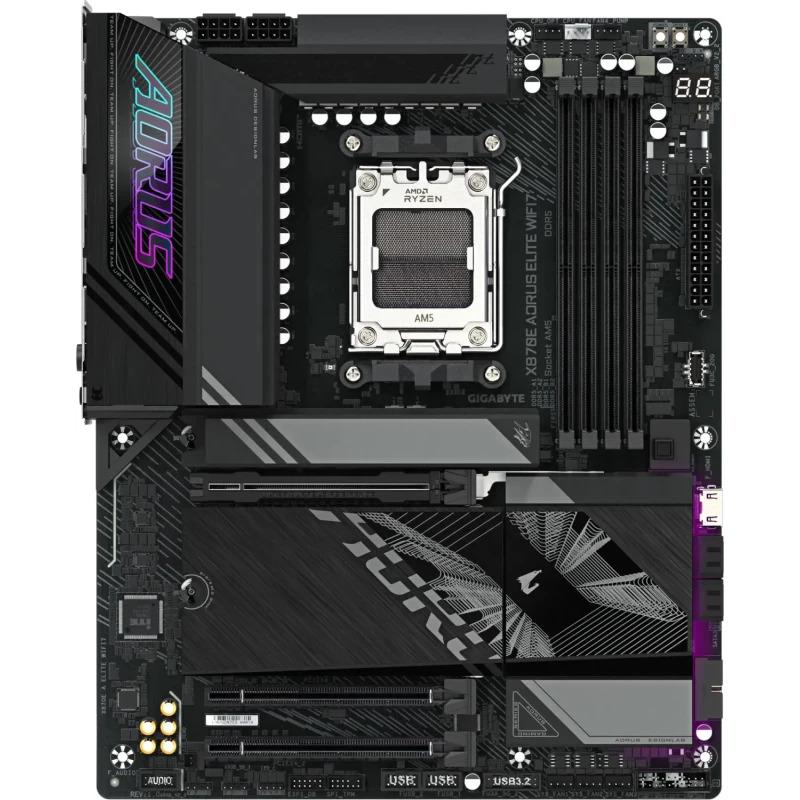

Placa de baza Gigabyte X870E AORUS ELITE WIFI7, Socket AM5, DDR5, ATX

1st M.2 Highest PCI Express Generation: 5

1st M.2 Largest Key Size: 25110

2nd M.2 Highest PCI Express Generation: 5

2nd M.2 Largest Key Size: 22110

3rd M.2 Highest PCI Express Generation: 5

3rd M.2 Largest Key Size: 22110

4th M.2 Highest PCI Express Generation: 4

4th M.2 Largest Key Size: 22110

ACPI Version: 5

ATX Power Connector (24-pin): Yes

Antenna Included: Yes

Audio Chip: Realtek ALC1220

Audio Output Channels: 7.1 channels

BIOS Memory Size: 256 Mbit

BIOS Type: UEFI AMI

Batteries Included: Yes

Battery Technology: Lithium-Manganese Dioxide (LiMnO2)

Battery Type: CR2032

Battery Weight: 3 g

Bluetooth Version: 5.4

Bundled Software: Norton® Internet Security (OEM version)LAN bandwidth management software

CPU Fan Connector: Yes

Clear CMOS Button: Yes

Clear CMOS Jumper: Yes

Compatible Processor Series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component For: PC

Country Of Origin: China

Depth: 24.4 mm

Desktop Management Interface (DMI) Version: 2.7

DirectX Version: 12

DisplayPort Version: 1.4

DisplayPorts Quantity: 0

ECC сompatibility: Non-ECC

EPS Power Connector (8-pin): Yes

Ethernet LAN: Yes

Ethernet LAN (RJ-45) Ports: 1

Ethernet Interface Type: 2.5 Gigabit Ethernet

Front Panel Audio Connector: Yes

Front Panel Connector: Yes

HDMI Ports Quantity: 1

HDMI Version: 2.1

Headphone Outputs: 1

Height: 35 mm

LAN Controller: Realtek RTL8125

Lithium Weight Per Battery: 0.07 g

MB-Format: ATX

MB-Socket: AM5

Maximum Internal Memory: 256 GB

Maximum Internal Memory Per Slot: 64 GB

Maximum Internal Memory Supported By Processor: 256 GB

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Microphone In: Yes

Motherboard Chipset: AMD X870E

Motherboard Chipset Family: AMD

Motherboard Form Factor: ATX

Number Of CPU Fan Connectors: 2

Number Of EPS Power Connectors (8-pin): 2

Number Of HDDs Supported: 4

Number Of M.2 (M) Slots: 4

Number Of RGB LED Pin Headers: 4

Number Of SATA II Connectors: 0

Number Of SATA III Connectors: 4

Number Of SATA Connectors: 0

Number Of Battery Cells: 1

Number Of Chassis Fan Connectors: 4

Number Of Memory Slots: 4

Number Of Storage Drives Supported: 8

Number Of Water Pump Connectors: 2

On-board Graphics Card: No

Onboard-CPU: No

PC Health Monitoring: CPU, Fan, Temperature, Voltage

PCI: 0

PCI Express X1 (Gen 3.x) Slots: 0

PCI Express X1 (Gen 4.x) Slots: 0

PCI Express X16 (Gen 3.x) Slots: 1

PCI Express X16 (Gen 4.x) Slots: 1

PCI Express X16 (Gen 5.x) Slots: 1

PCI Express X4 (Gen 3.x) Slots: 0

PCI Express X4 (Gen 4.x) Slots: 0

PCI Express X4 Slots: 2

PCI Express X8 (Gen 3.x) Slots: 0

PCI Express X8 (Gen 4.x) Slots: 0

PCI Express X8 (Gen 5.x) Slots: 0

PCI-Ex1: 0

PCI-Ex16: 3

PS/2 Ports Quantity: 0

Package Depth: 294 mm

Package Height: 80 mm

Package Weight: 2.74 kg

Package Width: 34.5 mm

Parallel Processing Technology Support: Not supported

Processor Manufacturer: AMD

Processor Socket: Socket AM5

Product Colour: Black

Products Per Shipping (inner) Case: 1 pc(s)

RAID Levels: 0, 1, 10

RAID Support: Yes

RAM-Slots: 4

RGB LED Pin Header: Yes

S/PDIF Out Port: Yes

Screws Included: Yes

Serial-or-Paralel: No/No

Supported Memory Clock Speed (max): 8200 MHz

Supported Memory Clock Speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz

Supported Memory Module Capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB

Supported Memory Types: DDR5-SDRAM

Supported Processor Sockets: Socket AM5

Supported Storage Drive Interfaces: M.2, SATA III

Supported Storage Drive Types: HDD & SSD

System Management BIOS (SMBIOS) Version: 2.7

TPM Connector: Yes

Top Wi-Fi Standard: Wi-Fi 7 (802.11be)

USB 2.0 Connectors: 2

USB 2.0 Ports Quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 0

USB 3.2 Gen 2x2 Type-C Ports Quantity: 0

USB 3.2 Gen 2x2 Connectors: 1

USB3: 4-8

USB4 Gen 2x2 Ports Quantity: 2

USB4 Gen 3x2 Ports Quantity: 0

Unbuffered Memory: Yes

Video-Connection: HDMI

WLAN Controller Model: MediaTek MT7925

Warranty Period: 3 year(s)

Weight: 2.4 kg

Wi-Fi: Yes

Wi-Fi Standards: Wi-Fi 7 (802.11be)

WiFi-AP Antenna Jack: 2

Width: 30.5 mm

Windows Operating Systems Supported: Windows 11 x64

MSATA Ports Quantity: 0

Bluetooth: Da

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: ATX

Gaming: Nu

HDMI: Da

Memorie Maxima: 256 GB

Model Chipset: X870E

Numar Sloturi Memorie: 4

RJ-45 LAN: 1

Sloturi M.2: 4

Soclu Procesor: Socket AM5

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR5

Tip Slot Interfata Grafica: N/A

USB Type C: Da

Wireless: Da
