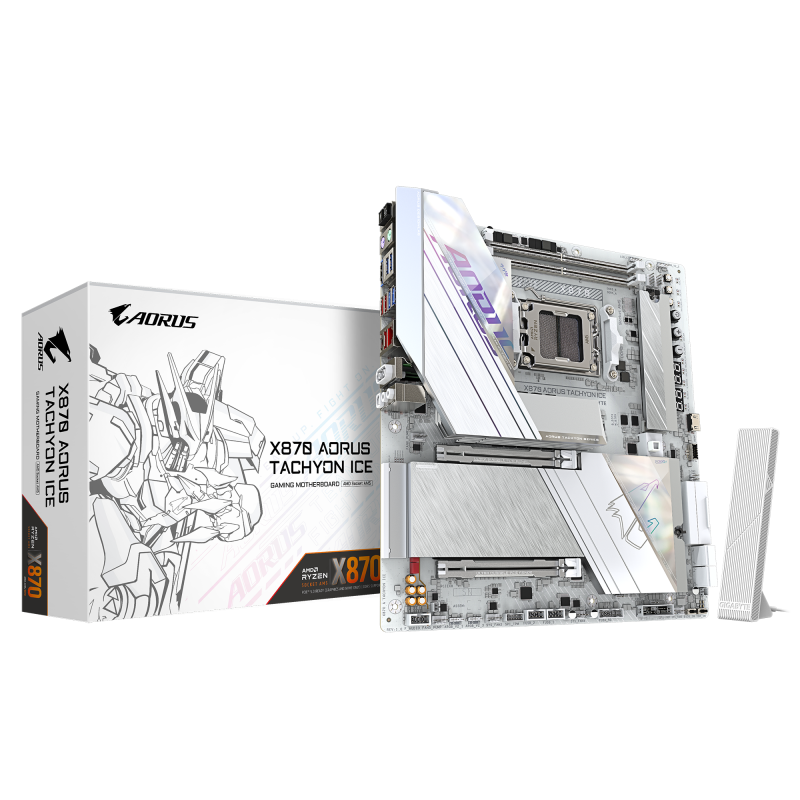

Placa de baza Gigabyte X870 AORUS TACHYON ICE, Socket AM5, DDR5, ATX

12V Power Connector: Yes

1st M.2 Highest PCI Express Generation: 5

1st M.2 Largest Key Size: 25110

2nd M.2 Highest PCI Express Generation: 4

2nd M.2 Largest Key Size: 22110

3rd M.2 Highest PCI Express Generation: 4

3rd M.2 Largest Key Size: 22110

ACPI Version: 5

ATX Power Connector (24-pin): Yes

Antenna Included: Yes

Audio Chip: Realtek ALC1220-VB

Audio Output Channels: 7.1 channels

BIOS Memory Size: 512 Mbit

BIOS Type: UEFI AMI

Batteries Included: Yes

Battery Technology: Lithium-Manganese Dioxide (LiMnO2)

Battery Type: CR2032

Battery Weight: 3 g

Bluetooth Version: 5.4

Bundled Software: Norton® Internet Security (OEM version)

CPU Fan Connector: Yes

Clear CMOS Jumper: Yes

Compatible Processor Series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component For: PC

Cooling Type: Passive

Country Of Origin: Taiwan

DVI-D Ports Quantity: 0

Depth: 275 mm

Desktop Management Interface (DMI) Version: 2.7

Digital Audio Optical Out: 1

DirectX Version: 12

DisplayPort Version: 1.4

ECC сompatibility: ECC & Non-ECC

EPS Power Connector (8-pin): Yes

Ethernet LAN: Yes

Ethernet LAN (RJ-45) Ports: 1

Ethernet Interface Type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Front Panel Audio Connector: Yes

Front Panel Connector: Yes

HDCP: Yes

HDMI Ports Quantity: 1

HDMI Version: 2.1

Headphone Outputs: 1

Height: 35 mm

LAN Controller: Realtek RTL8126

Line-in: Yes

Lithium Weight Per Battery: 0.07 g

MB-Format: ATX

MB-Socket: AM5

Maximum Internal Memory: 128 GB

Maximum Internal Memory Per Slot: 64 GB

Maximum Resolution: 4096 x 2160 pixels

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Motherboard Chipset: AMD X870

Motherboard Chipset Family: AMD

Motherboard Form Factor: Extended ATX

Number Of CPU Fan Connectors: 2

Number Of EPS Power Connectors (8-pin): 2

Number Of HDDs Supported: 4

Number Of M.2 (M) Slots: 3

Number Of RGB LED Pin Headers: 4

Number Of SATA III Connectors: 2

Number Of Battery Cells: 1

Number Of Chassis Fan Connectors: 6

Number Of Memory Slots: 2

Number Of Noise Detection Headers: 1

Number Of Storage Drives Supported: 7

Number Of Temperature Sensor Headers: 2

Number Of Water Pump Connectors: 3

Onboard-CPU: No

PC Health Monitoring: Fan, Temperature, Voltage, Water cooling

PCI: 0

PCI Express X16 (Gen 5.x) Slots: 2

PCI-Ex1: 0

PCI-Ex16: 1

PS/2 Ports Quantity: 2

Package Depth: 335 mm

Package Height: 430 mm

Package Weight: 3.91 kg

Package Width: 400 mm

Parallel Processing Technology Support: Not supported

Power Source Type: ATX

Processor Manufacturer: AMD

Processor Socket: Socket AM5

Product Colour: White

Products Per Shipping (inner) Case: 1 pc(s)

RAID Levels: 0, 1, 5, 10

RAID Support: Yes

RAM-Slots: 4

RGB LED Pin Header: Yes

S/PDIF Out Port: Yes

Screws Included: Yes

Serial-or-Paralel: No/No

Supported Memory Clock Speed (max): 9600 MHz

Supported Memory Types: DDR5-SDRAM

Supported Processor Sockets: Socket AM5

Supported Storage Drive Interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Supported Storage Drive Types: HDD & SSD

System Management BIOS (SMBIOS) Version: 2.7

TPM Connector: Yes

Top Wi-Fi Standard: Wi-Fi 7 (802.11be)

USB 2.0 Connectors: 2

USB 2.0 Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 0

USB 3.2 Gen 2x2 Connectors: 1

USB3: 4-8

USB4 Gen 3x2 Ports Quantity: 1

Unbuffered Memory: Yes

VGA (D-Sub) Ports Quantity: 0

Video-Connection: HDMI

WLAN Controller Model: Realtek RTL8922AE

Warranty Period: 3 year(s)

Weight: 3.32 kg

Wi-Fi: Yes

Wi-Fi Standards: Wi-Fi 7 (802.11be)

WiFi-AP Antenna Jack: 2

Width: 30.5 mm

Windows Operating Systems Supported: Windows 11 x64

Bluetooth: Nu

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: ATX

Gaming: Da

HDMI: Da

Memorie Maxima: 128 GB

Model Chipset: X870

Numar Sloturi Memorie: 2

RJ-45 LAN: 1

Sloturi M.2: 3

Soclu Procesor: Socket AM5

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR5

Tip Slot Interfata Grafica: N/A

USB Type C: N/A

Wireless: Da
