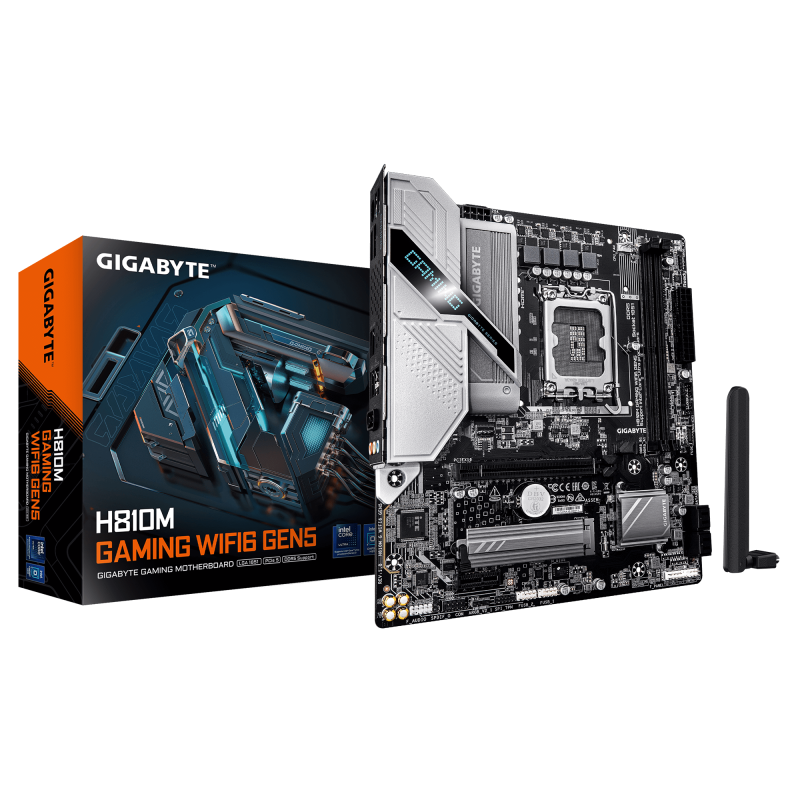

Placa de baza Gigabyte H810M GAMING WIFI6 GEN5, LGA 1851, DDR5, Micro-ATX

1st M.2 Highest PCI Express Generation: 4

1st M.2 Largest Key Size: 2280

ACPI Version: 5

ATX Power Connector (24-pin): Yes

Antenna Included: Yes

Audio Chip: Realtek ALC897

Audio Output Channels: 7.1 channels

BIOS Memory Size: 256 Mbit

BIOS Type: UEFI AMI

Batteries Included: Yes

Battery Capacity: 220 mAh

Battery Technology: Lithium-Manganese Dioxide (LiMnO2)

Battery Type: CR2032

Battery Weight: 3 g

Bluetooth Version: 5.4

Bundled Software: Norton® Internet Security (OEM version)

CPU Fan Connector: Yes

Clear CMOS Jumper: Yes

Compatible Processor Series: Intel Core Ultra (Series 2)

Component For: PC

Cooling Type: Passive

Country Of Origin: China

DVI-D Ports Quantity: 0

Depth: 215 mm

Desktop Management Interface (DMI) Version: 2.7

DirectX Version: 12

DisplayPort Version: 2.1

DisplayPorts Quantity: 1

ECC сompatibility: ECC & Non-ECC

EPS Power Connector (8-pin): Yes

Ethernet LAN: Yes

Ethernet LAN (RJ-45) Ports: 1

Ethernet Interface Type: 2.5 Gigabit Ethernet

Front Panel Audio Connector: Yes

Front Panel Connector: Yes

HDCP: Yes

HDCP Version: 2.3

HDMI Ports Quantity: 1

HDMI Version: 2.1

Headphone Outputs: 1

Height: 35 mm

LAN Controller: Realtek RTL8125

Line-in: Yes

Lithium Weight Per Battery: 0.07 g

Maximum Internal Memory: 128 GB

Maximum Internal Memory Per Slot: 64 GB

Maximum Resolution: 4096 x 2160 pixels

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Microphone In: Yes

Motherboard Chipset: Intel H810

Motherboard Chipset Family: Intel

Motherboard Form Factor: micro ATX

Number Of CPU Fan Connectors: 1

Number Of EPS Power Connectors (8-pin): 1

Number Of HDDs Supported: 4

Number Of M.2 (M) Slots: 1

Number Of RGB LED Pin Headers: 2

Number Of SATA III Connectors: 4

Number Of Battery Cells: 1

Number Of Chassis Fan Connectors: 2

Number Of Memory Slots: 2

Number Of Storage Drives Supported: 5

PC Health Monitoring: Fan, Temperature, Voltage, Water cooling

PCI Express X1 (Gen 3.x) Slots: 1

PCI Express X16 (Gen 5.x) Slots: 1

PS/2 Ports Quantity: 1

Package Depth: 268 mm

Package Height: 68 mm

Package Weight: 1.14 kg

Package Width: 270 mm

Parallel Processing Technology Support: Not supported

Power Source Type: ATX

Processor Manufacturer: Intel

Processor Socket: LGA 1851 (Socket V1)

Product Colour: Dark brown

Products Per Shipping (inner) Case: 1 pc(s)

RGB LED Pin Header: Yes

S/PDIF Out Connector: Yes

Screws Included: Yes

Serial Port Headers: 1

Supported Memory Clock Speed (max): 6400 MHz

Supported Memory Clock Speeds: 5600,6400 MHz

Supported Memory Types: DDR5-SDRAM

Supported Processor Sockets: LGA 1851

Supported Storage Drive Interfaces: M.2, PCI Express 4.0, SATA III

Supported Storage Drive Types: HDD & SSD

System Management BIOS (SMBIOS) Version: 2.7

TPM Connector: Yes

Top Wi-Fi Standard: Wi-Fi 6 (802.11ax)

USB 2.0 Connectors: 2

USB 2.0 Ports Quantity: 5

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 0

Unbuffered Memory: Yes

VGA (D-Sub) Ports Quantity: 0

WLAN Controller Model: Realtek RTL8851BE

Warranty Period: 3 year(s)

Weight: 1.05 kg

Wi-Fi Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WiFi-AP Antenna Jack: 2

Width: 244 mm

Windows Operating Systems Supported: Windows 10 x64, Windows 11 x64

Bluetooth: Da

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: Micro-ATX

Gaming: Da

HDMI: Da

Memorie Maxima: 128 GB

Model Chipset: H810

Numar Sloturi Memorie: 2

RJ-45 LAN: 1

Sloturi M.2: 1

Soclu Procesor: Socket 1851

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR5

Tip Slot Interfata Grafica: PCIe 5.0 x16

USB Type C: N/A

Wireless: Da
