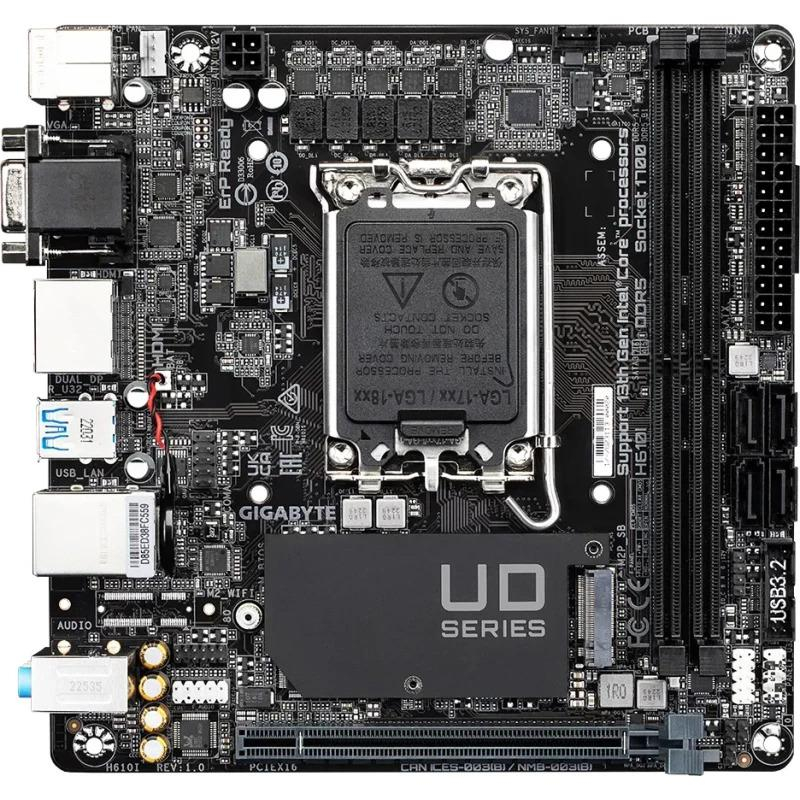

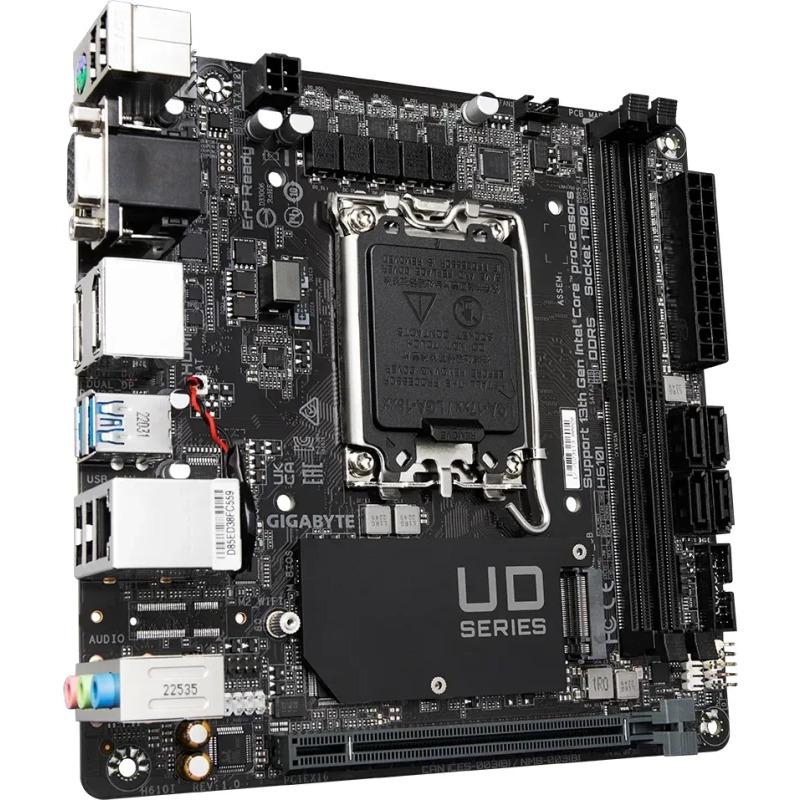

Placa de baza Gigabyte H610I, Socket 1700, DDR5, Mini-ITX

12V Power Connector: Yes

ACPI Version: 5

ATX Power Connector (24-pin): Yes

Audio Chip: Realtek ALC897

Audio Output Channels: 7.1 channels

BIOS Memory Size: 256 Mbit

BIOS Type: UEFI AMI

Batteries Included: Yes

Battery Technology: Lithium-Manganese Dioxide (LiMnO2)

Battery Type: CR2032

Battery Weight: 3 g

Bundled Software: Norton® Internet Security (OEM version)LAN bandwidth management software

CPU Fan Connector: Yes

Cables Included: SATA

Chassis Intrusion Connector: Yes

Clear CMOS Button: Yes

Clear CMOS Jumper: Yes

Component For: PC

Cooling Type: Active

Country Of Origin: China

DVI-D Ports Quantity: 0

Depth: 170 mm

Desktop Management Interface (DMI) Version: 2.7

DisplayPort Version: 1.2

DisplayPorts Quantity: 2

ECC сompatibility: ECC & Non-ECC

Ethernet LAN: Yes

Ethernet LAN (RJ-45) Ports: 1

Ethernet Interface Type: Gigabit Ethernet

Front Panel Audio Connector: Yes

Front Panel Connector: Yes

Graphics Card: HD Graphics

Graphics Card Family: Intel

HDCP: Yes

HDMI Ports Quantity: 1

HDMI Version: 2

Headphone Outputs: 3

Height: 35 mm

Lithium Weight Per Battery: 0.07 g

Maximum Internal Memory: 64 GB

Maximum Internal Memory Supported By Processor: 64 GB

Maximum Resolution: 4096 x 2304 pixels

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Microphone In: Yes

Motherboard Chipset: Intel H610 Express

Motherboard Chipset Family: Intel

Motherboard Form Factor: mini ITX

Number Of HDDs Supported: 1

Number Of M.2 (M) Slots: 1

Number Of SATA III Connectors: 4

Number Of Battery Cells: 1

Number Of Chassis Fan Connectors: 2

Number Of Memory Slots: 2

Number Of Storage Drives Supported: 5

Onboard-CPU: No

PC Health Monitoring: Fan, Temperature, Voltage

PCI: 0

PCI Express X16 Slots: 1

PS/2 Ports Quantity: 1

Package Depth: 180 mm

Package Height: 65 mm

Package Weight: 590 g

Package Width: 222 mm

Parallel Processing Technology Support: Not supported

Power Source Type: ATX

Processor Manufacturer: Intel

Processor Socket: LGA 1700

Product Colour: Black

Products Per Shipping (inner) Case: 1 pc(s)

RGB LED Pin Header: Yes

Serial Port Headers: 1

Serial-or-Paralel: No/No

Supported Memory Clock Speed (max): 5600 MHz

Supported Memory Clock Speeds: 5600, 5200, 4800, 4400 MHz

Supported Memory Module Capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Supported Memory Types: DDR5-SDRAM

Supported Processor Sockets: LGA 1700

Supported Storage Drive Interfaces: M.2, SATA III

Supported Storage Drive Types: HDD & SSD

System Management BIOS (SMBIOS) Version: 2.7

TPM Connector: Yes

USB 2.0 Connectors: 1

USB 2.0 Ports Quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 0

USB Connector Type: USB Type-A

Unbuffered Memory: Yes

VGA (D-Sub) Ports Quantity: 1

Video-Connection: HDMI/DP

Warranty Period: 3 year(s)

Width: 170 mm

Windows Operating Systems Supported: Windows 10 x64, Windows 11 x64

Bluetooth: Nu

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: Mini-ITX

Gaming: Nu

HDMI: Da

Memorie Maxima: 64 GB

Model Chipset: H610

Numar Sloturi Memorie: 2

RJ-45 LAN: 1

Sloturi M.2: 1

Soclu Procesor: Socket 1700

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR5

Tip Slot Interfata Grafica: PCIe 3.0 x16

USB Type C: Da

Wireless: Nu
