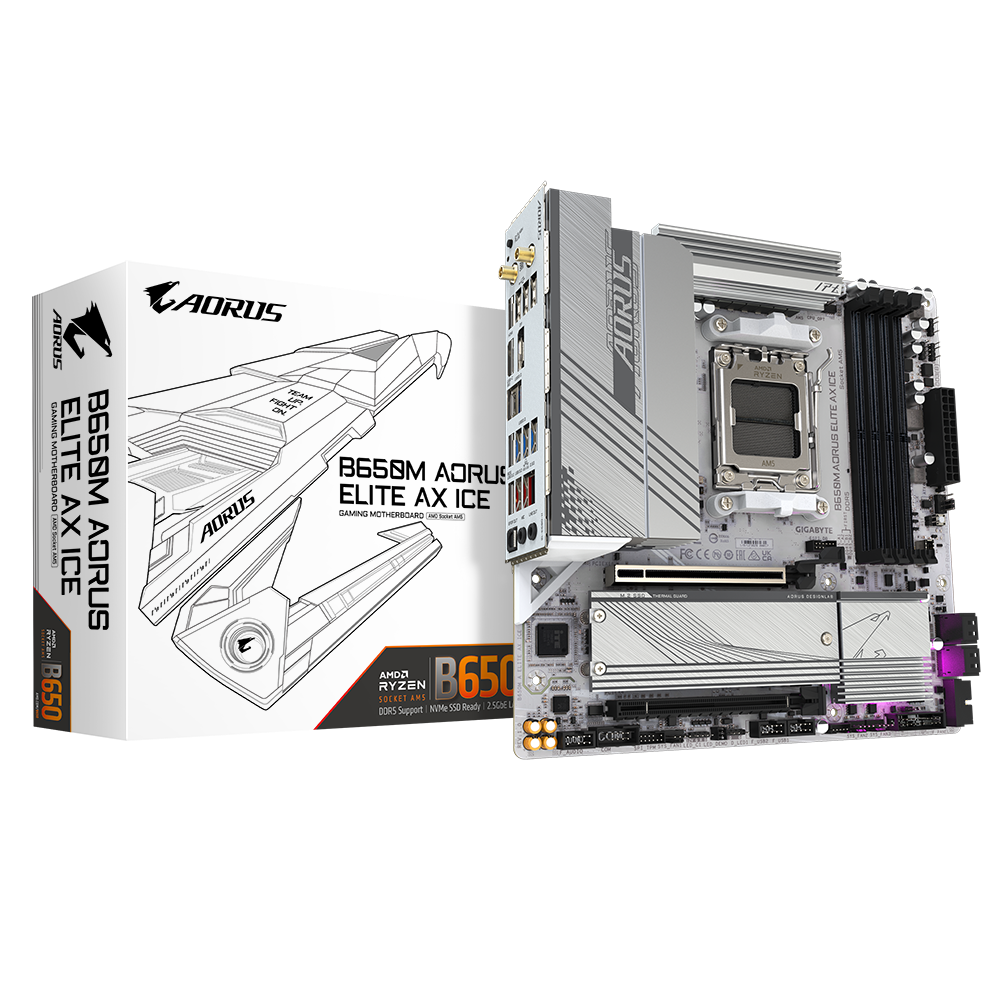

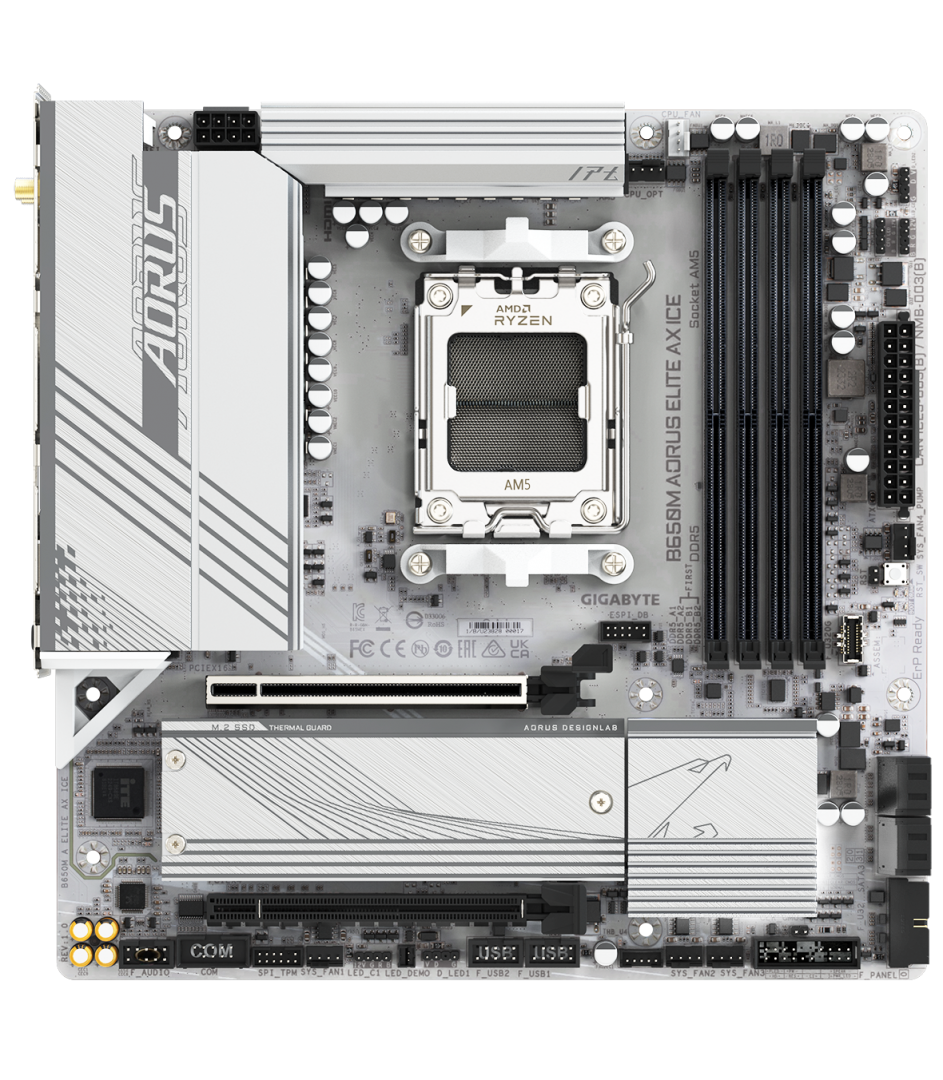

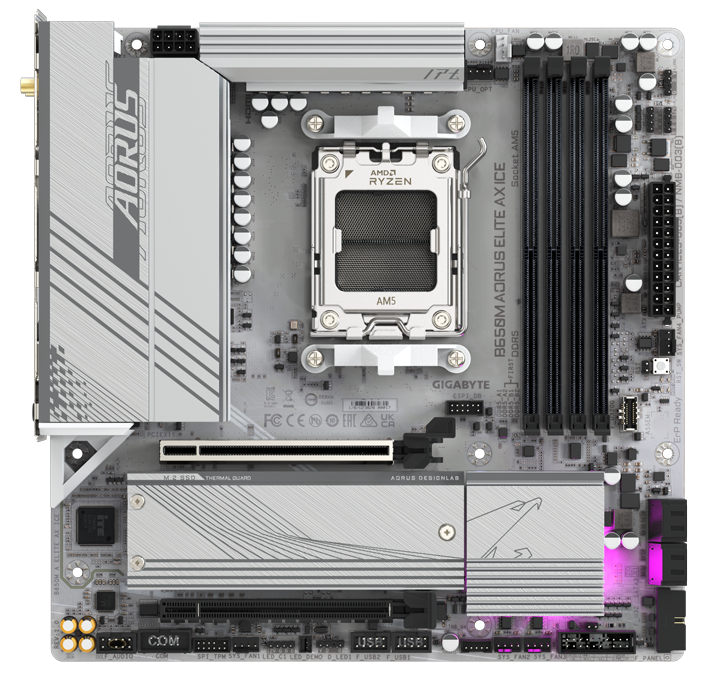

Placa de baza Gigabyte B650M AORUS ELITE AX ICE, Socket AM5, DDR5, Micro-ATX

12V Power Connector: Yes

1st M.2 Highest PCI Express Generation: 5

1st M.2 Largest Key Size: 25110

2nd M.2 Highest PCI Express Generation: 4

2nd M.2 Largest Key Size: 25110

ACPI Version: 5

ATX Power Connector (24-pin): Yes

Antenna Included: Yes

Audio Chip: Realtek ALC897

Audio Output Channels: 7.1 channels

BIOS Memory Size: 256 Mbit

BIOS Type: UEFI AMI

Battery Technology: Lithium-Manganese Dioxide (LiMnO2)

Battery Type: CR2032

Battery Weight: 3 g

Bluetooth Version: 5.3

Bundled Software: Norton® Internet Security (OEM version)LAN bandwidth management software

CPU Fan Connector: Yes

Clear CMOS Jumper: Yes

Compatible Processor Series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component For: PC

Country Of Origin: China

DVI-D Ports Quantity: 0

Depth: 24.4 mm

Desktop Management Interface (DMI) Version: 2.7

Digital Audio Optical Out: 1

DirectX Version: 12

Discrete Graphics Support: Yes

DisplayPort Version: 1.4

DisplayPorts Quantity: 1

ECC сompatibility: Non-ECC

Ethernet LAN: Yes

Ethernet Interface Type: 2.5 Gigabit Ethernet

Front Panel Audio Connector: Yes

Front Panel Connector: Yes

HDCP: Yes

HDMI Ports Quantity: 1

HDMI Version: 2.1

Headphone Outputs: 1

Height: 35 mm

LAN Controller: Realtek RTL8125

Line-in: Yes

Lithium Weight Per Battery: 0.07 g

Maximum Internal Memory: 256 GB

Maximum Internal Memory Per Slot: 64 GB

Maximum Resolution: 4096 x 2304 pixels

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Motherboard Chipset: AMD B650

Motherboard Chipset Family: AMD

Motherboard Form Factor: micro ATX

Number Of CPU Fan Connectors: 2

Number Of HDDs Supported: 4

Number Of M.2 (M) Slots: 2

Number Of RGB LED Pin Headers: 5

Number Of SATA III Connectors: 4

Number Of Battery Cells: 1

Number Of Chassis Fan Connectors: 4

Number Of Memory Slots: 4

Number Of Storage Drives Supported: 6

Number Of Water Pump Connectors: 2

Onboard-CPU: No

PC Health Monitoring: Fan, Temperature, Voltage, Water cooling

PCI: 0

PCI Express X16 (Gen 4.x) Slots: 2

Package Depth: 268 mm

Package Height: 68 mm

Package Weight: 1.89 kg

Package Width: 270 mm

Parallel Processing Technology Support: Not supported

Power Source Type: ATX

Processor Manufacturer: AMD

Processor Socket: Socket AM5

Product Colour: White

RAID Levels: 0, 1, 10

RAID Support: Yes

RGB LED Pin Header: Yes

S/PDIF Out Port: Yes

Screws Included: Yes

Serial Port Headers: 1

Serial-or-Paralel: No/No

Supported Memory Clock Speed (max): 8000 MHz

Supported Memory Clock Speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz

Supported Memory Types: DDR5-SDRAM

Supported Processor Sockets: Socket AM5

Supported Storage Drive Interfaces: M.2, SATA III

Supported Storage Drive Types: HDD & SSD

System Management BIOS (SMBIOS) Version: 2.7

TPM Connector: Yes

Top Wi-Fi Standard: Wi-Fi 6E (802.11ax)

USB 2.0 Connectors: 2

USB 2.0 Ports Quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 0

USB 3.2 Gen 2x2 Connectors: 1

Unbuffered Memory: Yes

VGA (D-Sub) Ports Quantity: 0

Video-Connection: HDMI/DP

WLAN Controller Model: Realtek RTL8852CE

WiFi-AP Antenna Jack: 2

Width: 244 mm

Windows Operating Systems Supported: Windows 10 x64, Windows 11 x64

Bluetooth: Da

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: Micro-ATX

Gaming: Da

HDMI: Da

Memorie Maxima: 256 GB

Model Chipset: B650

Numar Sloturi Memorie: 4

RJ-45 LAN: 1

Sloturi M.2: 2

Soclu Procesor: Socket AM5

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR5

Tip Slot Interfata Grafica: PCIe 5.0 x16

USB Type C: Da

Wireless: Da
