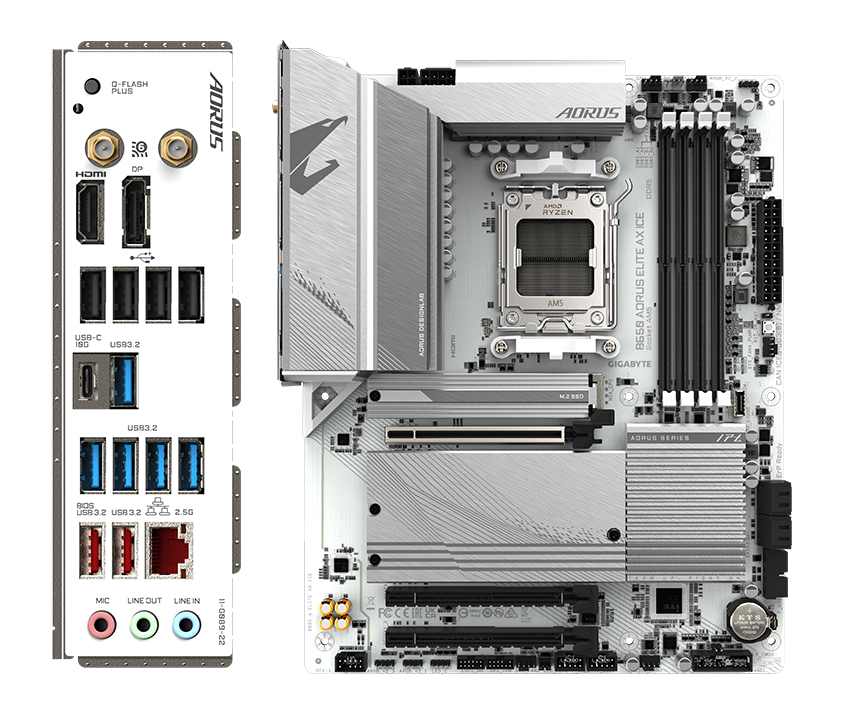

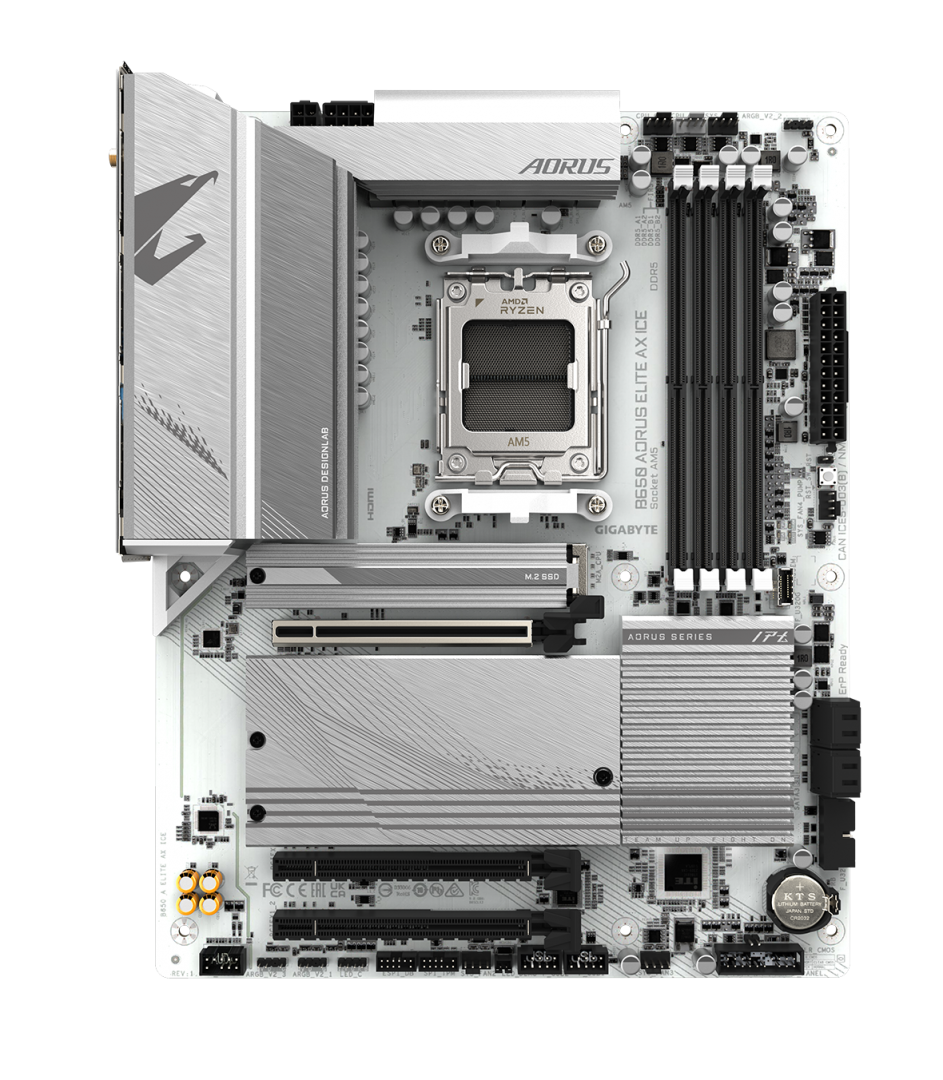

Placa de baza Gigabyte B650 AORUS ELITE AX ICE, Socket AM5, DDR5, ATX

12V Power Connector: Yes

ACPI Version: 5

ATX Power Connector (24-pin): Yes

Audio Output Channels: 7.1 channels

BIOS Memory Size: 256 Mbit

BIOS Type: UEFI AMI

Battery Technology: Lithium-Manganese Dioxide (LiMnO2)

Battery Type: CR2032

Battery Weight: 3 g

Bluetooth Version: 5.3

CPU Fan Connector: Yes

Cables Included: SATA

Clear CMOS Jumper: Yes

Compatible Processor Series: AMD Ryzen™ 7

Component For: PC

Country Of Origin: China

DVI-D Ports Quantity: 0

Depth: 24.4 mm

Desktop Management Interface (DMI) Version: 2.7

DirectX Version: 12

DisplayPort Version: 1.4

DisplayPorts Quantity: 1

Drivers Included: Yes

ECC сompatibility: Non-ECC

Ethernet LAN: Yes

Ethernet Interface Type: 2.5 Gigabit Ethernet

Front Panel Audio Connector: Yes

Front Panel Connector: Yes

HDCP: Yes

HDMI Ports Quantity: 1

HDMI Version: 2.1

Height: 35 mm

Lithium Weight Per Battery: 0.07 g

MB-Format: micro-ATX

MB-Socket: AM5

Maximum Internal Memory: 192 GB

Maximum Internal Memory Supported By Processor: 192 GB

Maximum Number Of SMP Processors: 1

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Microphone In: Yes

Motherboard Chipset: AMD B650

Motherboard Chipset Family: AMD

Motherboard Form Factor: ATX

Number Of HDDs Supported: 4

Number Of M.2 (M) Slots: 3

Number Of SATA III Connectors: 4

Number Of Battery Cells: 1

Number Of Chassis Fan Connectors: 4

Number Of Memory Slots: 4

Number Of Storage Drives Supported: 7

Onboard-CPU: No

PC Health Monitoring: Fan, Temperature, Voltage

PCI: 0

PCI Express X16 Slots: 1

PCI-Ex1: 0

PCI-Ex16: 3

Package Depth: 270 mm

Package Height: 80 mm

Package Weight: 2.33 kg

Package Width: 335 mm

Power Source Type: ATX

Processor Manufacturer: AMD

Processor Socket: Socket AM5

Product Colour: White

RAID Levels: 0, 1, 5, 10

RAID Support: Yes

RAM-Slots: 4

RGB LED Pin Header: Yes

Serial-or-Paralel: No/No

Supported Memory Clock Speed (max): 8000 MHz

Supported Memory Clock Speeds: 4400,4800,5200,5600,6000,6200,6600,6666,7000,7200,7600,7800,8000 MHz

Supported Memory Module Capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB

Supported Memory Types: DDR5-SDRAM

Supported Processor Sockets: Socket AM5

Supported Storage Drive Interfaces: M.2, SATA III

Supported Storage Drive Types: HDD & SSD

System Management BIOS (SMBIOS) Version: 2.7

Thunderbolt Headers: 2

Top Wi-Fi Standard: Wi-Fi 6E (802.11ax)

Total Number Of SATA Connectors: 4

USB 2.0 Connectors: 2

USB 2.0 Ports Quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 0

USB 3.2 Gen 2x2 Type-C Ports Quantity: 1

USB 3.2 Gen 2x2 Connectors: 1

USB Connector Type: USB Type-A, USB Type-C

USB3: 4-8

Unbuffered Memory: Yes

VGA (D-Sub) Ports Quantity: 0

Video-Connection: HDMI/DP

WLAN Controller Model: Realtek RTL8852CE

Wi-Fi Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WiFi-AP Antenna Jack: 2

Width: 30.5 mm

Windows Operating Systems Supported: Windows 10 x64, Windows 11 x64

Bluetooth: Da

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: ATX

Gaming: Nu

HDMI: Da

Memorie Maxima: 192 GB

Model Chipset: B650

Numar Sloturi Memorie: 4

RJ-45 LAN: 1

Sloturi M.2: 3

Soclu Procesor: Socket AM5

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR5

Tip Slot Interfata Grafica: N/A

USB Type C: Da

Wireless: Da
