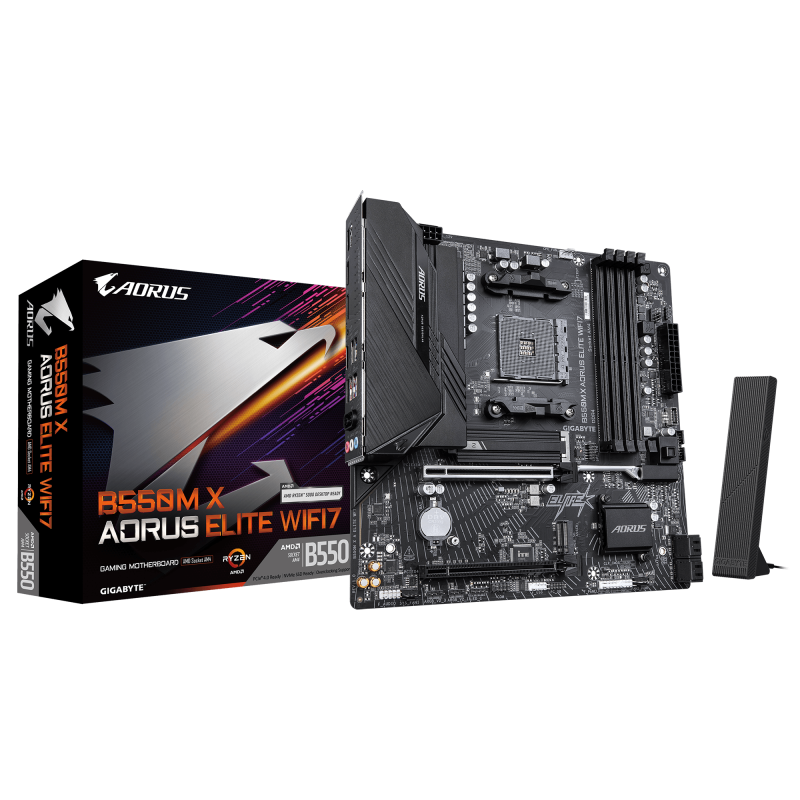

Placa de baza Gigabyte B550M X AORUS ELITE WIFI7, Socket AM4, DDR4, Micro-ATX

12V Power Connector: Yes

1st M.2 Highest PCI Express Generation: 4

1st M.2 Largest Key Size: 2580

2nd M.2 Highest PCI Express Generation: 3

2nd M.2 Largest Key Size: 2280

ACPI Version: 5

ATX Power Connector (24-pin): Yes

Antenna Included: Yes

Audio Chip: Realtek ALC1220

Audio Output Channels: 7.1 channels

BIOS Memory Size: 128 Mbit

BIOS Type: UEFI AMI

Batteries Included: Yes

Battery Capacity: 220 mAh

Battery Technology: Lithium-Manganese Dioxide (LiMnO2)

Battery Type: CR2032

Battery Weight: 3 g

Bluetooth Version: 5.4

Bundled Software: Norton® Internet Security (OEM version)

CPU Fan Connector: Yes

Clear CMOS Jumper: Yes

Compatible Processor Series: AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series

Component For: PC

Cooling Type: Passive

Country Of Origin: China

DVI-D Ports Quantity: 0

Depth: 244 mm

Desktop Management Interface (DMI) Version: 2.3

DirectX Version: 12

DisplayPort Version: 1.4

DisplayPorts Quantity: 1

ECC сompatibility: ECC & Non-ECC

EPS Power Connector (8-pin): Yes

Ethernet LAN: Yes

Ethernet LAN (RJ-45) Ports: 1

Ethernet Interface Type: 2.5 Gigabit Ethernet

Front Panel Audio Connector: Yes

Front Panel Connector: Yes

HDCP: Yes

HDCP Version: 2.3

HDMI Ports Quantity: 1

HDMI Version: 2.1

Headphone Outputs: 1

Height: 35 mm

LAN Controller: Realtek RTL8125

Line-in: Yes

Lithium Weight Per Battery: 0.07 g

Maximum Internal Memory: 128 GB

Maximum Internal Memory Per Slot: 32 GB

Maximum Resolution: 5120 x 2880 pixels

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Microphone In: Yes

Motherboard Chipset: AMD B550

Motherboard Chipset Family: AMD

Motherboard Form Factor: micro ATX

Number Of CPU Fan Connectors: 2

Number Of EPS Power Connectors (8-pin): 1

Number Of HDDs Supported: 4

Number Of M.2 (M) Slots: 2

Number Of RGB LED Pin Headers: 4

Number Of SATA III Connectors: 4

Number Of Battery Cells: 1

Number Of Chassis Fan Connectors: 2

Number Of Memory Slots: 4

Number Of Storage Drives Supported: 6

Number Of Water Pump Connectors: 2

PC Health Monitoring: Temperature, Voltage, Fan, Water cooling

PCI Express X16 (Gen 3.x) Slots: 1

PCI Express X16 (Gen 4.x) Slots: 1

Package Depth: 268 mm

Package Height: 68 mm

Package Weight: 1.3 kg

Package Width: 270 mm

Parallel Processing Technology Support: Not supported

Power Source Type: ATX

Processor Manufacturer: AMD

Processor Socket: Socket AM4

Product Colour: Black

Products Per Shipping (inner) Case: 1 pc(s)

RAID Levels: 0, 1, 10

RAID Support: Yes

RGB LED Pin Header: Yes

Screws Included: Yes

Serial Port Headers: 1

Supported Memory Clock Speed (max): 3200 MHz

Supported Memory Clock Speeds: 3200,2933,2667,2400,2133 MHz

Supported Memory Types: DDR4-SDRAM

Supported Processor Sockets: Socket AM4

Supported Storage Drive Interfaces: M.2, PCI Express 4.0, PCI Express 3.0, SATA III

Supported Storage Drive Types: HDD & SSD

System Management BIOS (SMBIOS) Version: 2.7

TPM Connector: Yes

Top Wi-Fi Standard: Wi-Fi 7 (802.11be)

USB 2.0 Connectors: 1

USB 2.0 Ports Quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 0

Unbuffered Memory: Yes

VGA (D-Sub) Ports Quantity: 0

WLAN Controller Model: Realtek RTL8922AE

Warranty Period: 3 year(s)

Weight: 1.14 kg

Wi-Fi: Yes

WiFi-AP Antenna Jack: 2

Width: 244 mm

Windows Operating Systems Supported: Windows 11

Bluetooth: Da

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: Micro-ATX

Gaming: Nu

HDMI: Da

Memorie Maxima: 128 GB

Model Chipset: B550

Numar Sloturi Memorie: 4

RJ-45 LAN: 1

Sloturi M.2: 2

Soclu Procesor: Socket AM4

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR4

Tip Slot Interfata Grafica: PCIe 4.0 x16

USB Type C: N/A

Wireless: Da
