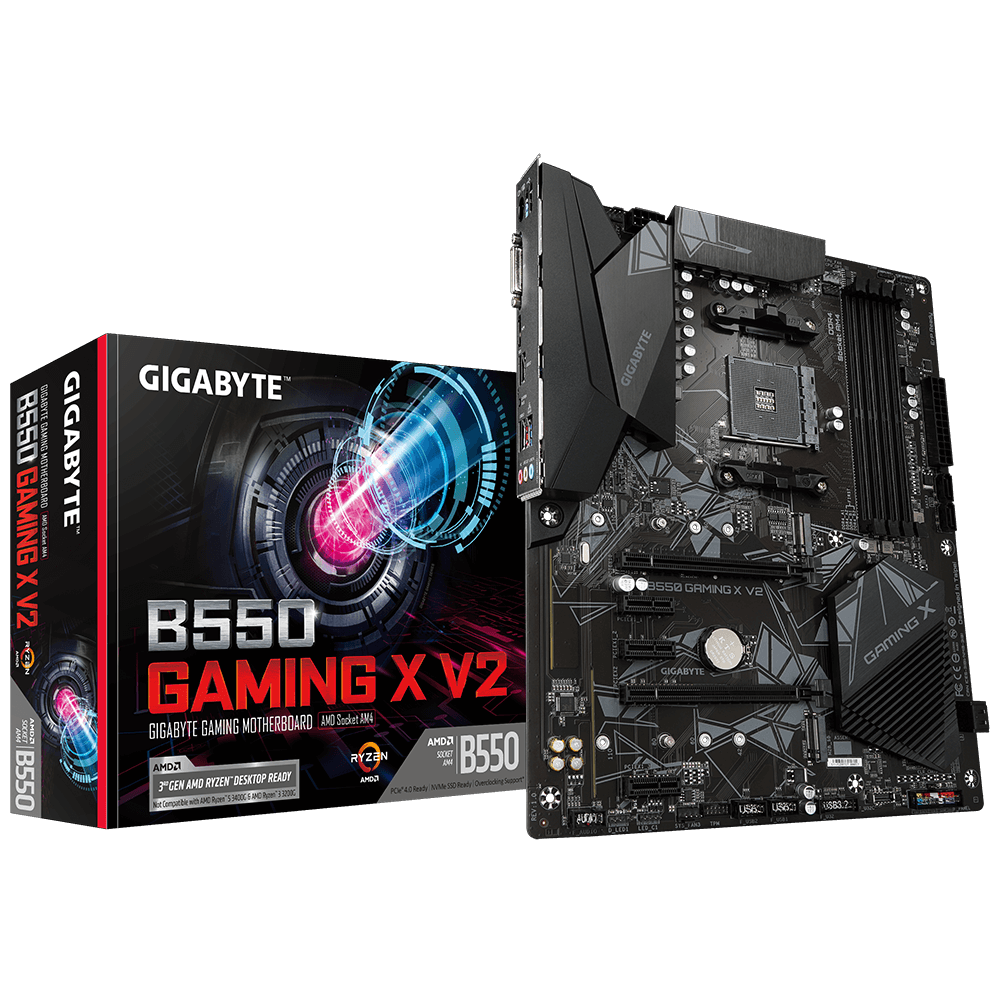

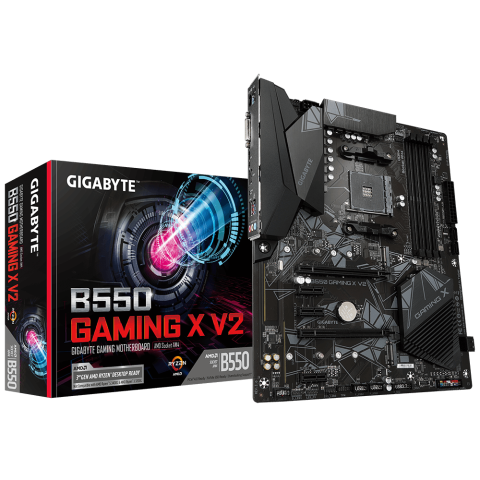

Placa de baza Gigabyte B550 GAMING X V2, Socket AM4, DDR4, ATX

12V Power Connector: Yes

1st M.2 Highest PCI Express Generation: 4

1st M.2 Largest Key Size: 22110

2nd M.2 Highest PCI Express Generation: 3

2nd M.2 Largest Key Size: 22110

ACPI Version: 5

ATX Power Connector (24-pin): Yes

Audio Chip: Realtek ALC897

Audio Output Channels: 7.1 channels

BIOS Memory Size: 128 Mbit

BIOS Type: UEFI AMI

Batteries Included: Yes

Battery Technology: Lithium-Manganese Dioxide (LiMnO2)

Battery Type: CR2032

Battery Weight: 3 g

Bundled Software: Norton® Internet Security (OEM version)LAN bandwidth management software

CPU Fan Connector: Yes

CPU încorporat: No

Clear CMOS Jumper: Yes

Compatible Processor Series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series

Component For: PC

Cooling Type: Passive

Country Of Origin: China

DVI Port: Yes

DVI-D Ports Quantity: 1

Depth: 24.4 mm

Desktop Management Interface (DMI) Version: 2.7

DirectX Version: 12

ECC сompatibility: ECC & Non-ECC

EPS Power Connector (8-pin): Yes

Ethernet LAN: Yes

Ethernet LAN (RJ-45) Ports: 1

Ethernet Interface Type: Gigabit Ethernet

Firewire (IEEE 1394) Ports: 0

Front Panel Audio Connector: Yes

Front Panel Connector: Yes

Graphics Card Family: AMD

HDCP: Yes

HDMI Ports Quantity: 1

HDMI Version: 2.1

Harmonized System (HS) Code: 84733020

Headphone Outputs: 1

Height: 35 mm

LAN Controller: Realtek RTL8111H

Line-in: Yes

Lithium Weight Per Battery: 0.07 g

Maximum Graphics Card Memory: 16 MB

Maximum Internal Memory: 128 GB

Maximum Internal Memory Per Slot: 32 GB

Maximum Internal Memory Supported By Processor: 128 GB

Maximum Number Of SMP Processors: 1

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Microphone In: Yes

Motherboard Chipset: AMD B550

Motherboard Chipset Family: AMD

Motherboard Form Factor: ATX

Number Of CPU Fan Connectors: 1

Number Of EPS Power Connectors (8-pin): 1

Number Of HDDs Supported: 4

Number Of M.2 (M) Slots: 2

Number Of Parallel ATA Connectors: 0

Number Of RGB LED Pin Headers: 5

Number Of SATA II Connectors: 0

Number Of SATA III Connectors: 4

Number Of SATA Connectors: 0

Number Of Battery Cells: 1

Number Of Chassis Fan Connectors: 3

Number Of Memory Slots: 4

Number Of Storage Drives Supported: 6

Number Of Water Pump Connectors: 4

On-board Graphics Card: No

PC Health Monitoring: Fan, Temperature, Voltage, Water cooling

PCI: 0

PCI Express X1 (Gen 3.x) Slots: 3

PCI Express X1 Slots: 3

PCI Express X16 (Gen 3.x) Slots: 2

PCI Express X16 (Gen 4.x) Slots: 1

PCI Express X16 Slots: 2

PS/2 Ports Quantity: 1

Package Depth: 270 mm

Package Height: 80 mm

Package Weight: 17.1 kg

Package Width: 335 mm

Parallel Processing Technology Support: Not supported

Power Fan Connector: Yes

Power Source Type: ATX

Processor Manufacturer: AMD

Processor Socket: Socket AM4

Product Colour: Brown

Products Per Shipping (inner) Case: 1 pc(s)

RAID Levels: 0, 1, 10

RAID Support: Yes

RGB LED Pin Header: Yes

S/PDIF Out Connector: No

Screws Included: Yes

Serial-or-Paralel: No/No

Supported DIMM Module Capacities: 32GB

Supported Memory Clock Speed (max): 4733 MHz

Supported Memory Clock Speeds: 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz

Supported Memory Module Capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 32GB

Supported Memory Types: DDR4-SDRAM

Supported Processor Sockets: Socket AM4

Supported Processor Sockets (cooler): Socket AM4

Supported Storage Drive Interfaces: M.2, SATA III

Supported Storage Drive Types: HDD & SSD

System Management BIOS (SMBIOS) Version: 2.7

TPM Connector: Yes

Total Number Of SATA Connectors: 4

USB 2.0 Connectors: 2

USB 2.0 Ports Quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 0

USB Connector Type: USB Type-A

Unbuffered Memory: Yes

VGA (D-Sub) Ports Quantity: 0

Video-Connection: DVI/HDMI

Warranty Period: 3 year(s)

Weight: 11.2 kg

Width: 30.5 mm

Windows Operating Systems Supported: Windows 10 x64, Windows 11 x64

ESATA Ports Quantity: 0

MSATA Ports Quantity: 0

Bluetooth: Nu

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: ATX

Gaming: Da

HDMI: Da

Memorie Maxima: 128 GB

Model Chipset: B550

Numar Sloturi Memorie: 4

RJ-45 LAN: 1

Sloturi M.2: 2

Soclu Procesor: Socket AM4

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR4

Tip Slot Interfata Grafica: PCIe 4.0 x16

USB Type C: Da

Wireless: Nu
