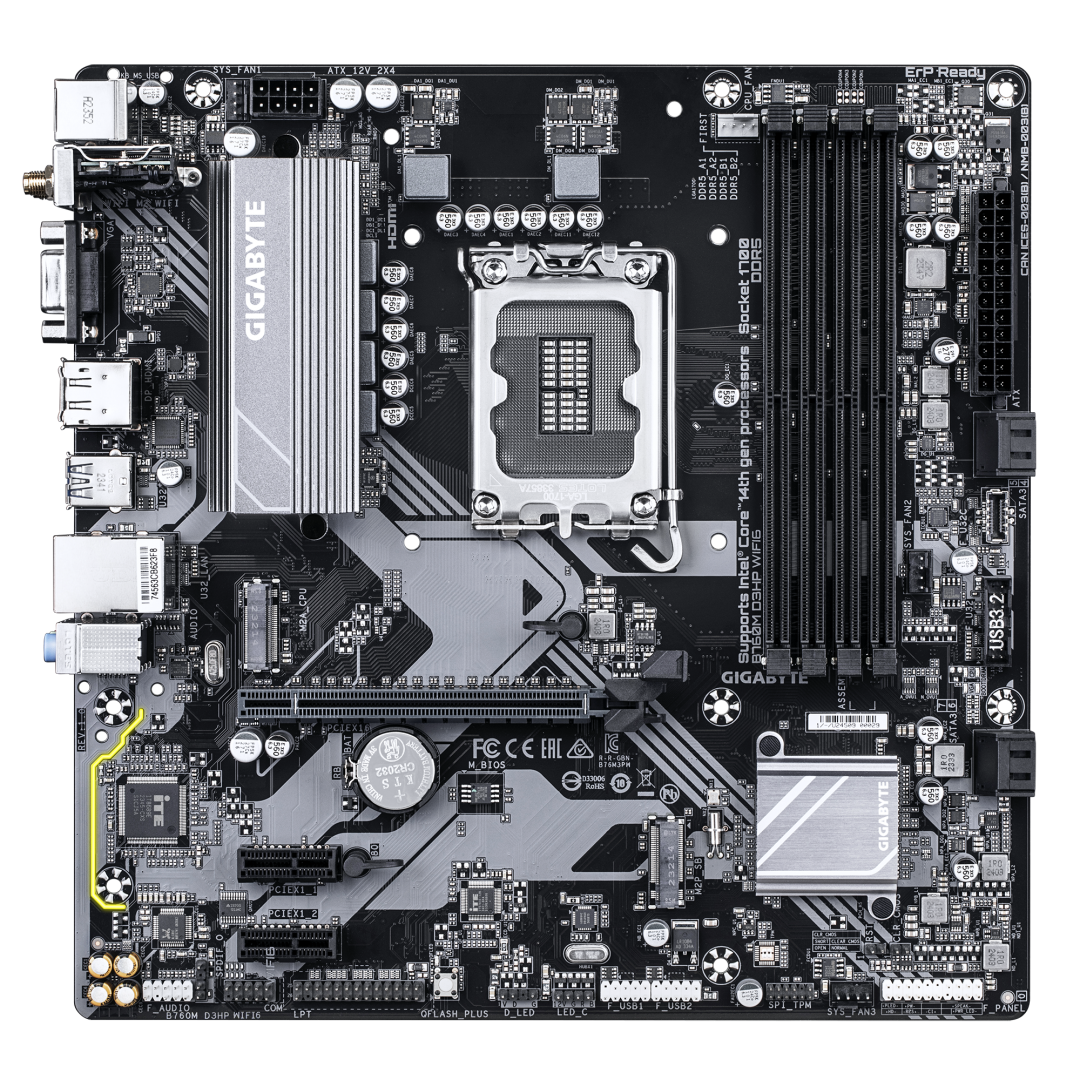

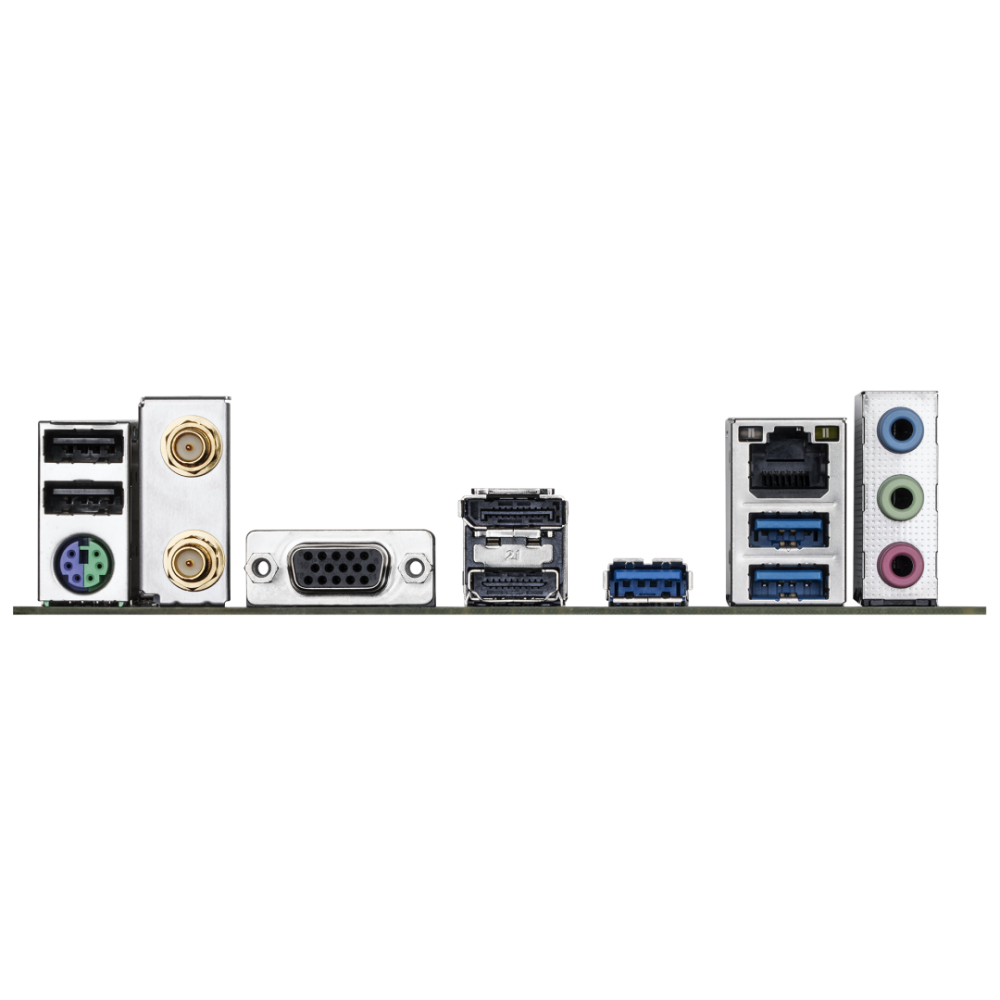

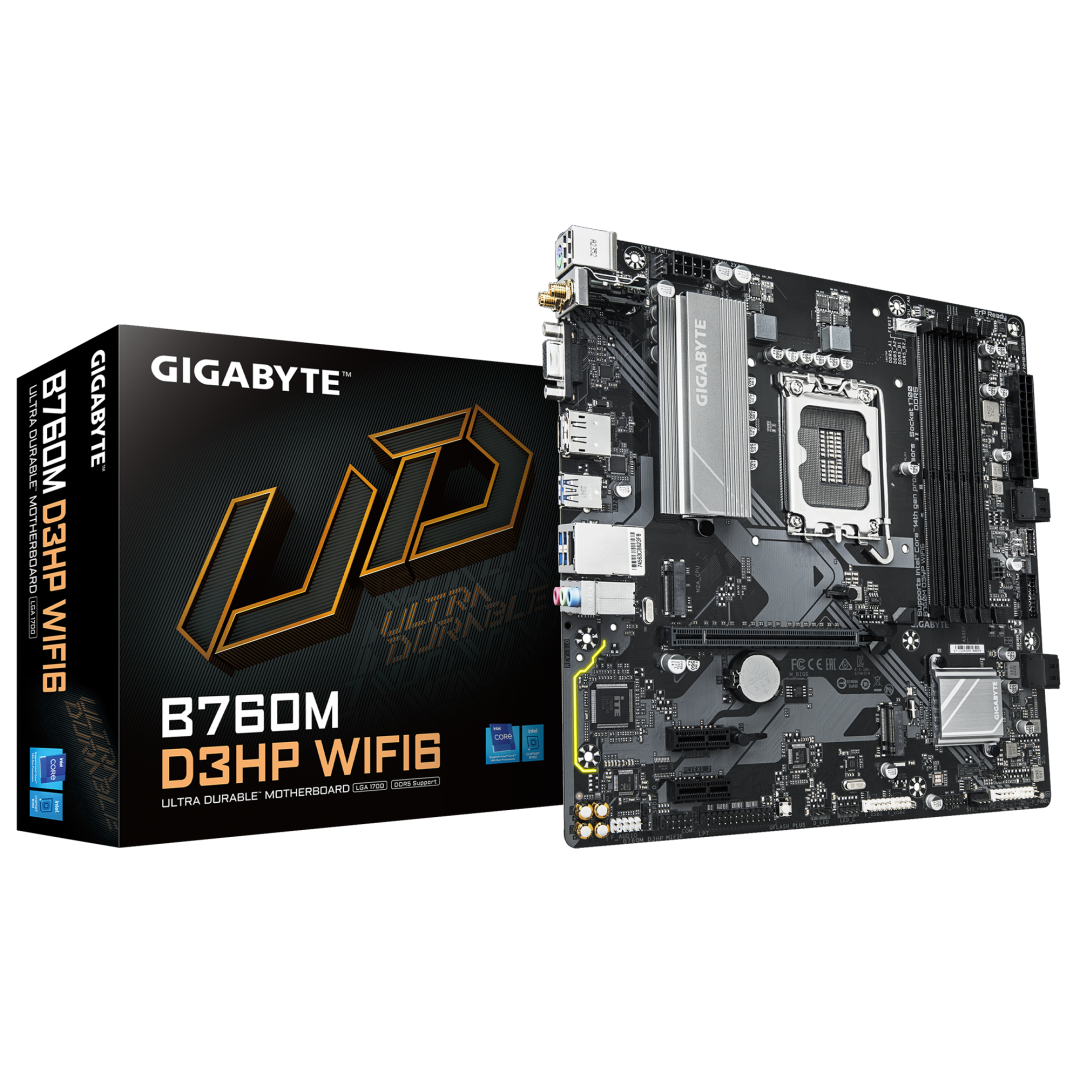

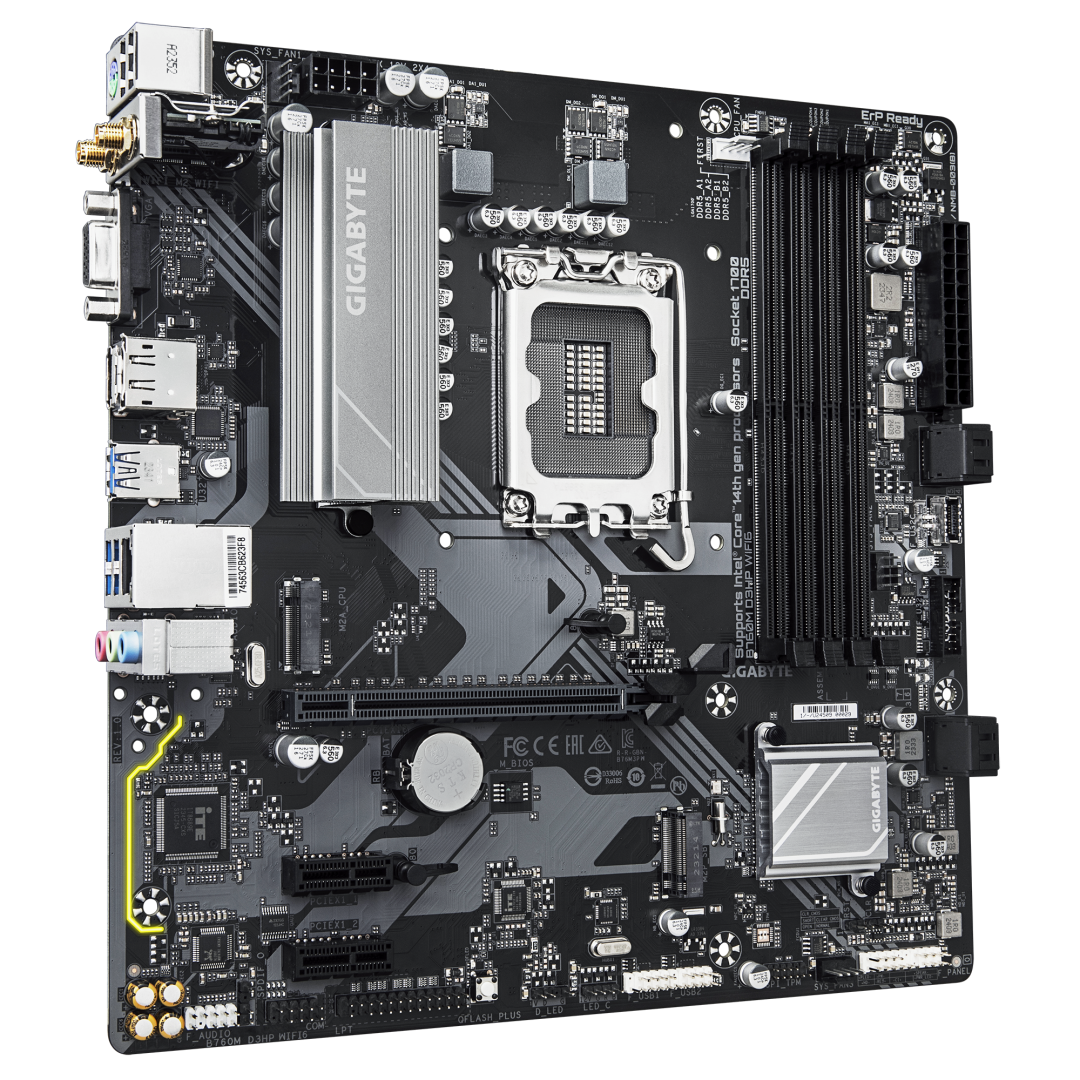

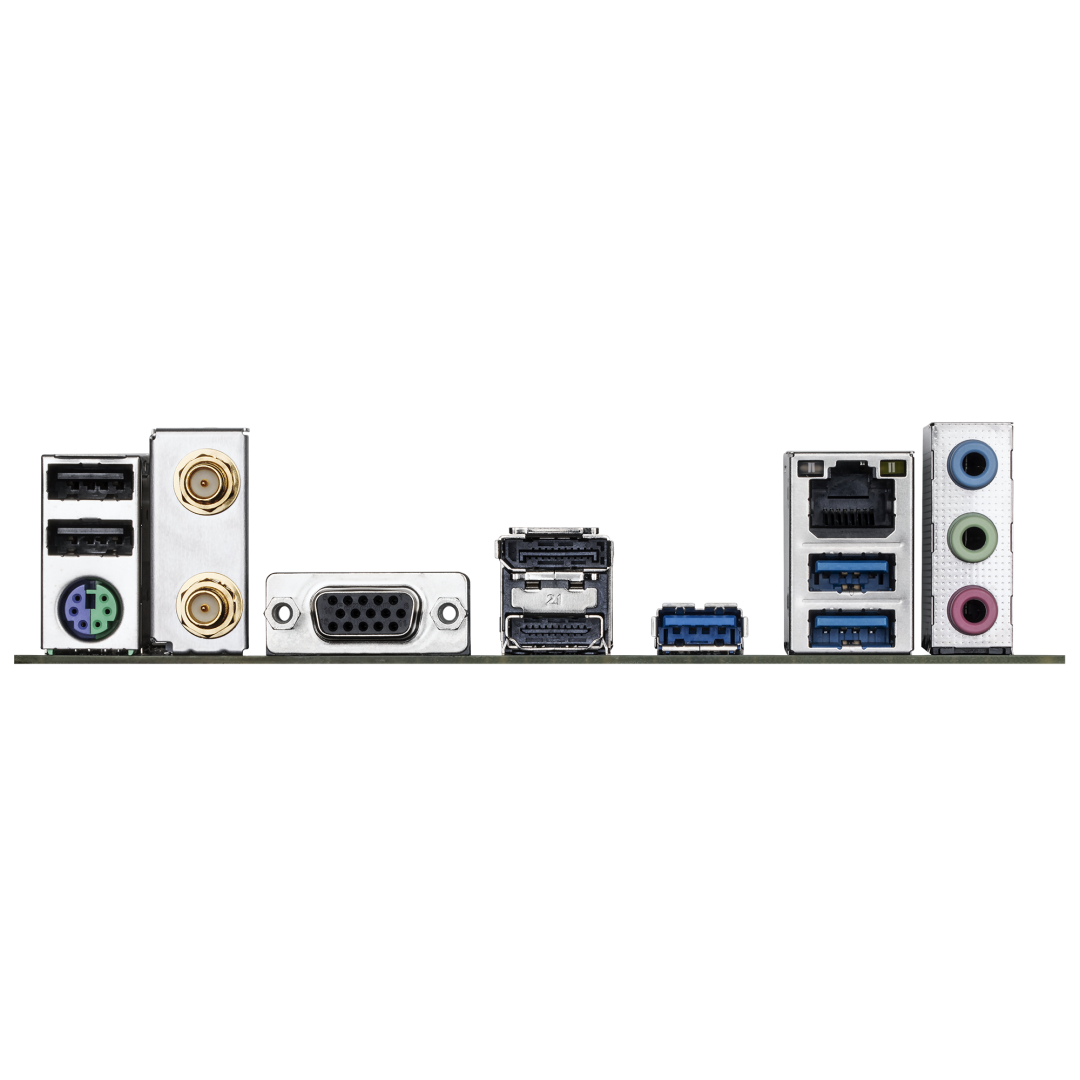

Placa de baza Gigabyte B760M D3HP WIFI6, LGA 1700, DDR5, mATX

12V Power Connector: Yes

1st M.2 Highest PCI Express Generation: 4

1st M.2 Largest Key Size: 2280

2nd M.2 Highest PCI Express Generation: 4

2nd M.2 Largest Key Size: 2280

ACPI Version: 5

ATX Power Connector (24-pin): Yes

Alte Specificatii: Suporta Extreme Memory Profile (XMP)

Antenna Included: Yes

Audio Chip: Realtek ALC897

Audio Jacks: 3

Audio Output Channels: 7.1 channels

BIOS: 128 Mbit flash, AMI UEFI BIOS

BIOS Memory Size: 128 Mbit

BIOS Type: UEFI AMI

Batteries Included: Yes

Battery Technology: Lithium-Manganese Dioxide (LiMnO2)

Battery Type: CR2032

Battery Weight: 3 g

Bluetooth Version: 5.3

Bundled Software: Norton® Internet Security (OEM version)LAN bandwidth management software

CPU Fan Connector: Yes

Capacitate Maxima Memorie RAM: 192 GB

Chipset: B760

Chipset Audio: Realtek

Chipset Retea: Realtek

Clear CMOS Jumper: Yes

Component For: PC

Conectori Speciali: 2 x conectori antena (1T1R)

Cooling Type: Passive

DVI-D Ports Quantity: 0

Depth: 24.4 mm

Desktop Management Interface (DMI) Version: 2.7

Dimensiuni (L X L, Cm): 24.4 x 24.4 cm

DirectX Version: 12

DisplayPort: 1

DisplayPort Version: 1.2

DisplayPorts Quantity: 1

ECC сompatibility: ECC & Non-ECC

EPS Power Connector (8-pin): Yes

Ethernet LAN: Yes

Ethernet Interface Type: Gigabit Ethernet

Frecvente Suportate: 5600/5200/4800/4400 MHz

Front Panel Audio Connector: Yes

Front Panel Connector: Yes

HDCP: Yes

HDMI Ports Quantity: 1

HDMI Version: 2.1

Header USB 3.0: Da

Headphone Outputs: 1

Height: 35 mm

Interfata Grafica: PCI Express x16 4.0

LAN Controller: Realtek RTL8111H

Line-in: Yes

Lithium Weight Per Battery: 0.07 g

MB-Format: micro-ATX

MB-Socket: 1700

Maximum Internal Memory: 192 GB

Maximum Internal Memory Per Slot: 48 GB

Maximum Resolution: 4096 x 2304 pixels

Memorie Suportata: DDR5

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Microphone In: Yes

Motherboard Chipset: Intel B760 Express

Motherboard Chipset Family: Intel

Motherboard Form Factor: micro ATX

NGFF (M.2): 2

Number Of CPU Fan Connectors: 1

Number Of EPS Power Connectors (8-pin): 1

Number Of HDDs Supported: 4

Number Of M.2 (M) Slots: 2

Number Of RGB LED Pin Headers: 2

Number Of SATA III Connectors: 4

Number Of Battery Cells: 1

Number Of Chassis Fan Connectors: 3

Number Of Memory Slots: 4

Number Of Storage Drives Supported: 6

Onboard-CPU: No

PC Health Monitoring: Fan, Temperature, Voltage, Water cooling

PCI: 0

PCI Express 3.0: 2 (x1)

PCI Express 4.0: 1 (x16)

PCI Express X1 (Gen 3.x) Slots: 2

PCI Express X16 (Gen 4.x) Slots: 1

PCI-Ex1: 2

PCI-Ex16: 1

PS/2 Combo Mouse/Tastatura: 1

PS/2 Ports Quantity: 1

Package Depth: 265 mm

Package Height: 54 mm

Package Weight: 1.2 kg

Package Width: 265 mm

Parallel Connector: Yes

Parallel Processing Technology Support: Not supported

Placa Audio Integrata: 7.1 Audio

Placa Retea Integrata: 1 Gbps

Placa Video Integrata: Necesita procesor cu tehnologia Intel Integrated Graphics

Power Source Type: ATX

Processor Manufacturer: Intel

Processor Socket: LGA 1700

Producator Chipset: Intel

Product Colour: Dark brown

Products Per Shipping (inner) Case: 1 pc(s)

RAID: 0, 1, 5, 10

RAID Levels: 0, 1, 5, 10

RAID Support: Yes

RAM-Slots: 4

RGB LED Pin Header: Yes

RJ-45: 1

_Recomandat Gaming: Da

S/PDIF Out Connector: Yes

SATA III: 4

Screws Included: Yes

Serial Port Headers: 1

Serial-or-Paralel: No/No

Sloturi Memorie: 4

Socket Procesor: 1700

Suport Audio: 7.1

Supported Memory Clock Speed (max): 5600 MHz

Supported Memory Clock Speeds: 4400,4800,5200,5600 MHz

Supported Memory Types: DDR5-SDRAM

Supported Processor Sockets: LGA 1700

Supported Storage Drive Interfaces: M.2, PCI Express 4.0, SATA III

Supported Storage Drive Types: HDD & SSD

System Management BIOS (SMBIOS) Version: 2.7

TPM Connector: Yes

Top Wi-Fi Standard: Wi-Fi 6 (802.11ax)

USB 2.0: 2

USB 2.0 Connectors: 2

USB 2.0 Ports Quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 0

USB 3.2 Gen1 Tip A: 3

USB3: 4-8

Unbuffered Memory: Yes

VGA: 1

VGA (D-Sub) Ports Quantity: 1

Video-Connection: HDMI/DP

WLAN Controller Model: Realtek RTL8851BE

Warranty Period: 3 year(s)

Weight: 1.11 kg

Wi-Fi Standards: Wi-Fi 6 (802.11ax)

WiFi-AP Antenna Jack: 2

Width: 244 mm

Windows Operating Systems Supported: Windows 10 x64, Windows 11 x64

Bluetooth: Da

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: Micro-ATX

Gaming: Nu

HDMI: Da

Memorie Maxima: 192 GB

Model Chipset: B760

Numar Sloturi Memorie: 4

RJ-45 LAN: 1

Sloturi M.2: 2

Soclu Procesor: Socket 1700

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR5

Tip Slot Interfata Grafica: PCIe 4.0 x16

USB Type C: N/A

Wireless: Da
