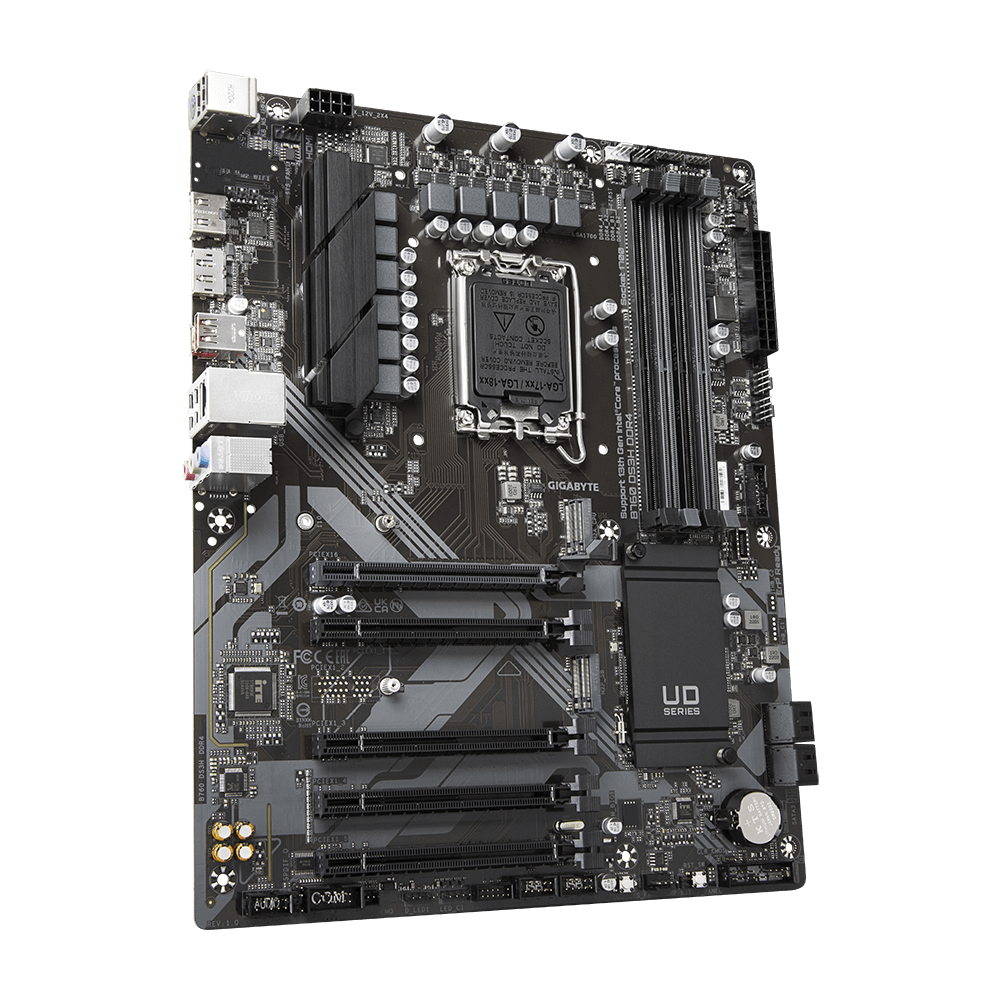

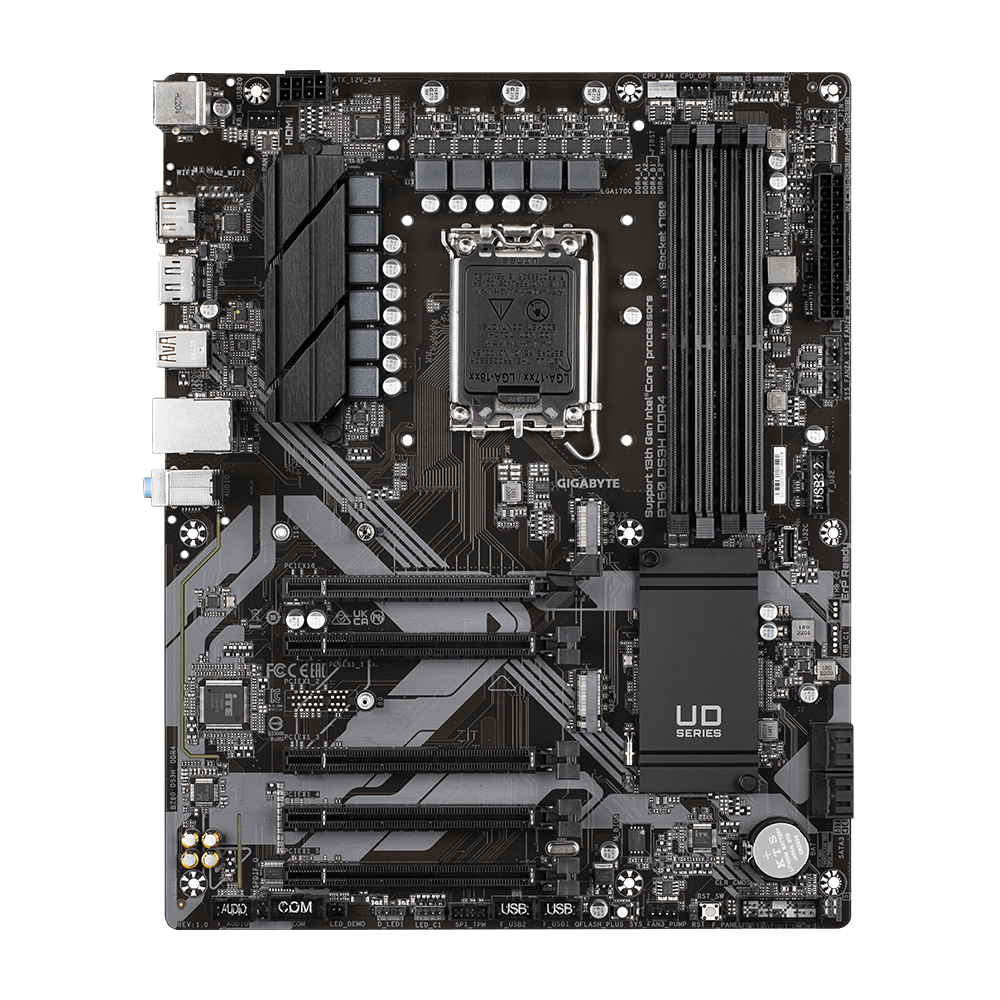

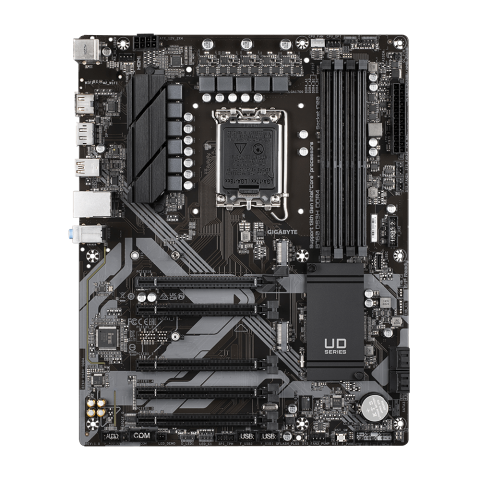

Placa de baza Gigabyte B760 DS3H DDR4, LGA 1700, DDR4, ATX

12V Power Connector: Yes

ACPI Version: 5

ATX Power Connector (24-pin): Yes

Audio Output Channels: 7.1 channels

BIOS Memory Size: 128 Mbit

BIOS Type: UEFI AMI

Battery Technology: Lithium-Manganese Dioxide (LiMnO2)

Battery Type: CR2032

Battery Weight: 3 g

Bundled Software: Norton Internet Security

CPU Fan Connector: Yes

Cables Included: SATA

Clear CMOS Jumper: Yes

Component For: PC

Country Of Origin: China

DVI-D Ports Quantity: 0

Depth: 24.4 mm

Desktop Management Interface (DMI) Version: 2.7

DirectX Version: 12

DisplayPort Version: 1.2

DisplayPorts Quantity: 1

ECC сompatibility: ECC & Non-ECC

EPS Power Connector (8-pin): Yes

Ethernet LAN: Yes

Ethernet Interface Type: Gigabit Ethernet

Front Panel Audio Connector: Yes

Front Panel Connector: Yes

HDCP: Yes

HDMI Ports Quantity: 1

HDMI Version: 2

Headphone Outputs: 3

Height: 35 mm

Lithium Weight Per Battery: 0.07 g

Maximum Internal Memory: 128 GB

Maximum Internal Memory Supported By Processor: 128 GB

Maximum Resolution: 4096 x 2304 pixels

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Microphone In: Yes

Motherboard Chipset: Intel B760 Express

Motherboard Chipset Family: Intel

Motherboard Form Factor: ATX

Number Of HDDs Supported: 4

Number Of M.2 (M) Slots: 2

Number Of SATA III Connectors: 4

Number Of Battery Cells: 1

Number Of Memory Slots: 4

Number Of Storage Drives Supported: 6

Onboard-CPU: No

PC Health Monitoring: Fan, Temperature, Voltage, Water cooling

PCI: 0

PCI Express X16 Slots: 5

PS/2 Ports Quantity: 1

Package Depth: 270 mm

Package Height: 80 mm

Package Weight: 1.31 kg

Package Width: 335 mm

Parallel Processing Technology Support: Not supported

Processor Manufacturer: Intel

Processor Socket: LGA 1700

RAID Levels: 0, 1, 5, 10

RAID Support: Yes

RGB LED Pin Header: Yes

S/PDIF Out Connector: Yes

Serial Port Headers: 1

Serial-or-Paralel: No/No

Supported Memory Clock Speed (max): 5333 MHz

Supported Memory Module Capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Supported Memory Types: DDR4-SDRAM

Supported Processor Sockets: LGA 1700

Supported Storage Drive Interfaces: M.2, PCI Express 4.0, SATA III

Supported Storage Drive Types: HDD & SSD

System Management BIOS (SMBIOS) Version: 2.7

TPM Connector: Yes

Total Number Of SATA Connectors: 4

USB 2.0 Connectors: 2

USB 2.0 Ports Quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 0

USB 3.2 Gen 2x2 Type-C Ports Quantity: 1

USB Connector Type: USB Type-A, USB Type-C

Unbuffered Memory: Yes

VGA (D-Sub) Ports Quantity: 0

Video-Connection: HDMI/DP

Width: 30.5 mm

Windows Operating Systems Supported: Windows 10 x64, Windows 11 x64

Bluetooth: Nu

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: ATX

Gaming: Nu

HDMI: Da

Memorie Maxima: 128 GB

Model Chipset: B760

Numar Sloturi Memorie: 4

RJ-45 LAN: 1

Sloturi M.2: 2

Soclu Procesor: Socket 1700

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR4

Tip Slot Interfata Grafica: PCIe 4.0 x16

USB Type C: Da

Wireless: Nu
