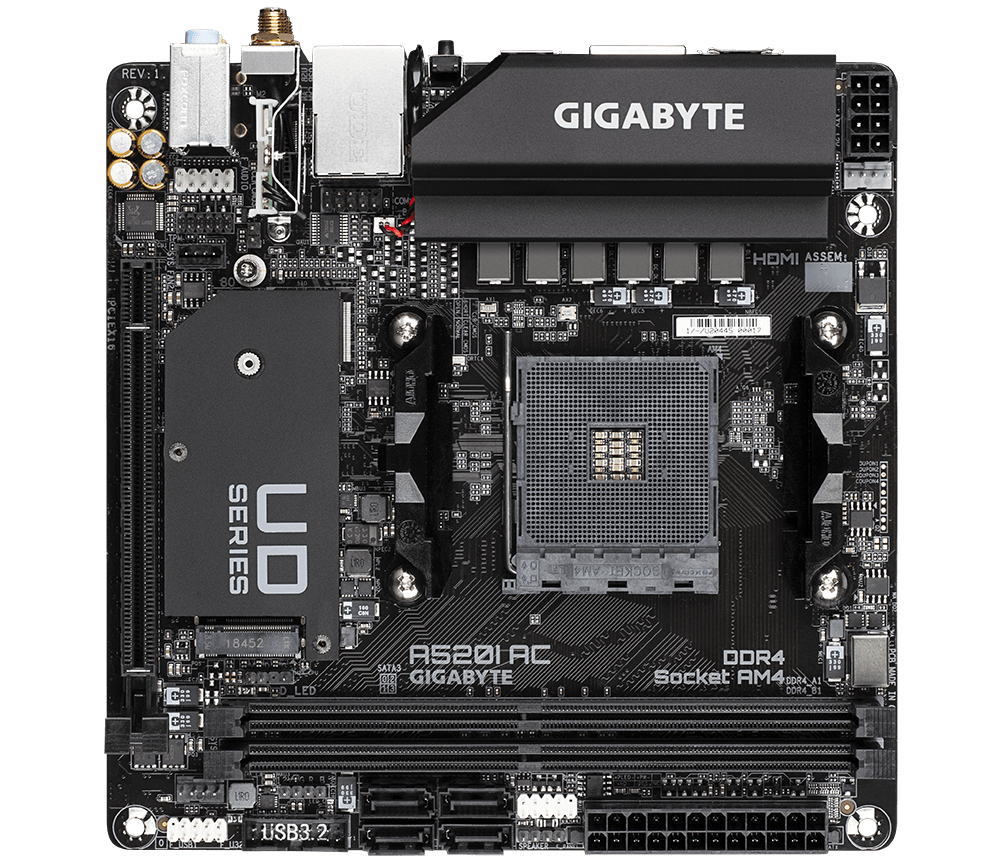

Placa de baza Gigabyte A520I AC, Socket AM4, DDR4, Micro-ATX

ACPI Version: 5

ATX Power Connector (24-pin): Yes

Audio Chip: Realtek ALC887

Audio Connector: Yes

Audio Output Channels: 7.1 channels

BIOS Memory Size: 128 Mbit

BIOS Type: UEFI AMI

Battery Technology: Lithium-Manganese Dioxide (LiMnO2)

Battery Type: CR2032

Battery Weight: 3 g

Bluetooth Version: 4.2

Bundled Software: Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility

CPU Fan Connector: Yes

Clear CMOS Jumper: Yes

Compatible Processor Series: AMD Ryzen 3000 Series

Component For: PC

Country Of Origin: China

DVI-D Ports Quantity: 0

Depth: 170 mm

Desktop Management Interface (DMI) Version: 2.7

DirectX Version: 12

DisplayPort Version: 1.4

DisplayPorts Quantity: 1

ECC сompatibility: ECC & Non-ECC

EPS Power Connector (8-pin): Yes

Ethernet LAN: Yes

Ethernet Interface Type: Gigabit Ethernet

Front Panel Audio Connector: Yes

Front Panel Connector: Yes

HDCP: Yes

HDMI Ports Quantity: 2

HDMI Version: 2.1

Headphone Outputs: 3

Height: 35 mm

Lithium Weight Per Battery: 0.07 g

Maximum Internal Memory: 64 GB

Maximum Internal Memory Supported By Processor: 64 GB

Maximum Resolution: 5120 x 2880 pixels

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Motherboard Chipset: AMD A520

Motherboard Chipset Family: AMD

Motherboard Form Factor: mini ITX

Number Of HDDs Supported: 4

Number Of M.2 (M) Slots: 1

Number Of Parallel ATA Connectors: 0

Number Of SATA II Connectors: 0

Number Of SATA III Connectors: 4

Number Of SATA Connectors: 0

Number Of Battery Cells: 1

Number Of Displays Supported: 3

Number Of Memory Slots: 2

Number Of Storage Drives Supported: 5

On-board Graphics Card: No

Onboard-CPU: No

PC Health Monitoring: Fan, Temperature, Voltage

PCI: 3

PCI Express X16 Slots: 1

Parallel Processing Technology Support: Not supported

Power Fan Connector: Yes

Processor Manufacturer: AMD

Processor Socket: Socket AM4

RAID Levels: 0, 1, 10

RAID Support: Yes

RGB LED Pin Header: Yes

Serial Port Headers: 1

Serial-or-Paralel: No/No

Supported Memory Clock Speed (max): 5300 MHz

Supported Memory Clock Speeds: 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 MHz

Supported Memory Module Capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Supported Memory Types: DDR4-SDRAM

Supported Processor Sockets: Socket AM4

Supported Storage Drive Interfaces: M.2, SATA III

System Management BIOS (SMBIOS) Version: 2.7

TPM Connector: Yes

Top Wi-Fi Standard: Wi-Fi 5 (802.11ac)

Total Number Of SATA Connectors: 4

USB 2.0 Connectors: 1

USB 2.0 Ports Quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 0

Unbuffered Memory: Yes

VGA (D-Sub) Ports Quantity: 0

Video-Connection: HDMI/DP

Wi-Fi: Yes

Wi-Fi Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

WiFi-AP Antenna Jack: 2

Width: 170 mm

Windows Operating Systems Supported: Windows 10 x64, Windows 11 x64

MSATA Ports Quantity: 0

Bluetooth: Da

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: Micro-ATX

Gaming: Da

HDMI: Nu

Memorie Maxima: 64 GB

Model Chipset: A520

Numar Sloturi Memorie: 2

RJ-45 LAN: 1

Sloturi M.2: 1

Soclu Procesor: Socket AM4

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR4

Tip Slot Interfata Grafica: PCIe 3.0 x16

USB Type C: Da

Wireless: Da
