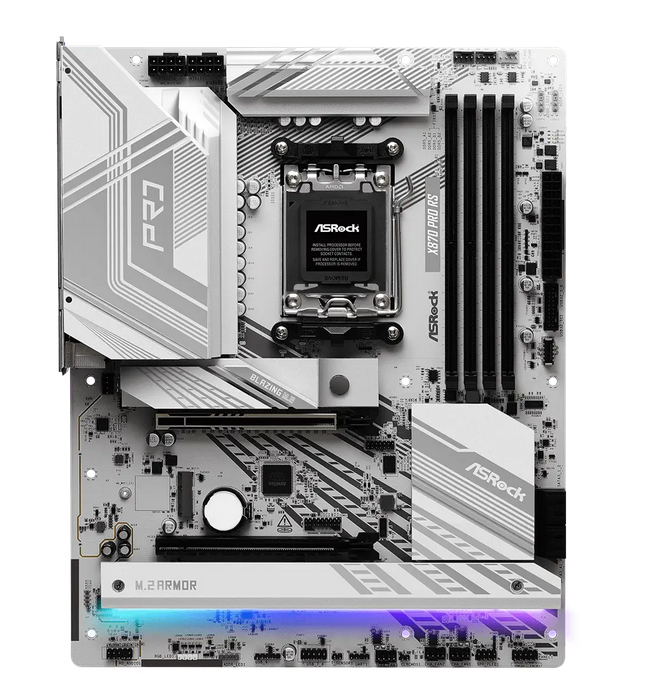

Placa de baza Asrock X870 PRO RS, Socket AM5, DDR5, ATX

1st M.2 Highest PCI Express Generation: 5

1st M.2 Largest Key Size: 2280

2nd M.2 Highest PCI Express Generation: 4

2nd M.2 Largest Key Size: 2280

3rd M.2 Highest PCI Express Generation: 3

3rd M.2 Largest Key Size: 2280

ATX Power Connector (24-pin): Yes

Audio Chip: Realtek ALC1220

Audio Output Channels: 7.1 channels

BIOS Memory Size: 256 Mbit

BIOS Type: UEFI AMI

CPU Fan Connector: Yes

Certification: FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)

Compatible Processor Series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component For: PC

DVI-D Ports Quantity: 0

Depth: 24.4 mm

Digital Audio Optical Out: 1

ECC сompatibility: ECC & Non-ECC

EPS Power Connector (8-pin): Yes

Ethernet LAN: Yes

Ethernet Interface Type: 2.5 Gigabit Ethernet

Front Panel Audio Connector: Yes

HDCP: Yes

HDMI Ports Quantity: 1

HDMI Version: 2.1

Headphone Outputs: 1

LAN Controller: Dragon RTL8125BG

MB-Format: ATX

MB-Socket: AM5

Maximum Internal Memory: 256 GB

Maximum Resolution: 7680 x 4320 pixels

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Microphone In: Yes

Motherboard Chipset: AMD X870

Motherboard Chipset Family: AMD

Motherboard Form Factor: ATX

Number Of CPU Fan Connectors: 2

Number Of EPS Power Connectors (8-pin): 2

Number Of HDDs Supported: 4

Number Of M.2 (E) Slots: 1

Number Of M.2 (M) Slots: 3

Number Of RGB LED Pin Headers: 5

Number Of SATA III Connectors: 4

Number Of Chassis Fan Connectors: 4

Number Of Memory Slots: 4

Number Of Storage Drives Supported: 7

Number Of Temperature Sensor Headers: 1

Number Of Water Pump Connectors: 1

Onboard-CPU: No

PCI: 0

PCI Express X16 (Gen 4.x) Slots: 1

PCI Express X16 (Gen 5.x) Slots: 1

PCI-Ex1: 0

PCI-Ex16: 2

Parallel Processing Technology Support: Crossfire

Power Source Type: ATX

Processor Manufacturer: AMD

Processor Socket: Socket AM5

Product Colour: White

RAID Levels: 0, 1, 10

RAID Support: Yes

RAM-Slots: 4

RGB LED Pin Header: Yes

S/PDIF Out Port: Yes

Serial-or-Paralel: No/No

Supported Memory Clock Speed (max): 8000 MHz

Supported Memory Types: DDR5-SDRAM

Supported Storage Drive Interfaces: PCI Express 3.0, PCI Express 4.0, PCI Express 5.0, SATA III

Supported Storage Drive Types: HDD & SSD

USB 2.0 Connectors: 2

USB 2.0 Ports Quantity: 6

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 0

USB 3.2 Gen 2x2 Connectors: 1

USB3: 4-8

USB4 Gen 2x2 Ports Quantity: 2

Unbuffered Memory: Yes

VGA (D-Sub) Ports Quantity: 0

Video-Connection: HDMI

Width: 30.5 mm

Windows Operating Systems Supported: Windows 10 x64, Windows 11 x64

Bluetooth: Nu

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: ATX

Gaming: Nu

HDMI: Da

Memorie Maxima: 256 GB

Model Chipset: X870

Numar Sloturi Memorie: 4

RJ-45 LAN: 1

Sloturi M.2: 4

Soclu Procesor: Socket AM5

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR5

Tip Slot Interfata Grafica: PCIe 5.0 x16

USB Type C: Da

Wireless: Nu
