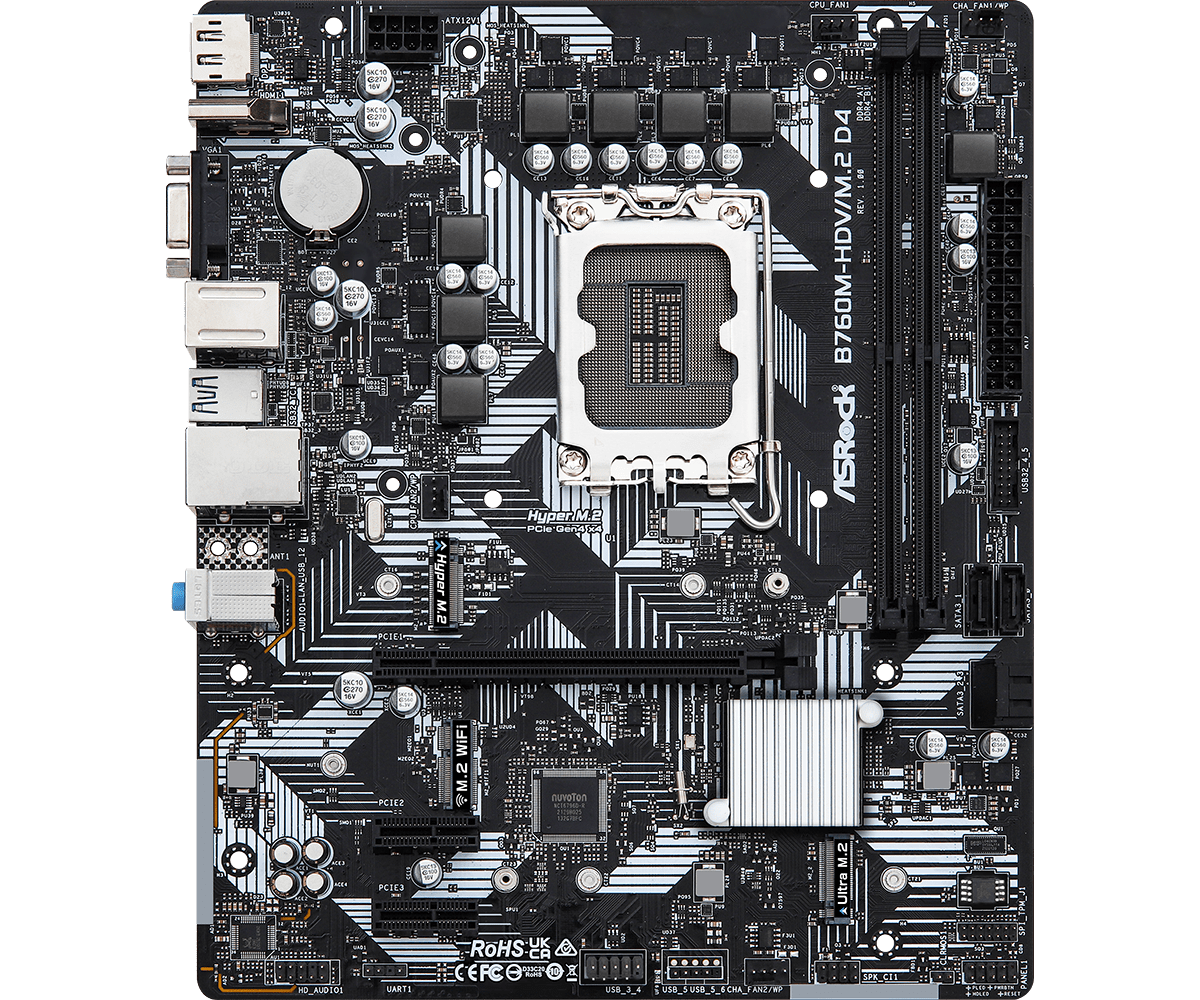

Placa de baza ASRock B760M-HDV/M.2 D4, LGA 1700, DDR4, Micro-ATX

ATX Power Connector (24-pin): Yes

Audio Chip: Realtek ALC897

Audio Output Channels: 7.1 channels

BIOS Memory Size: 128 Mbit

BIOS Type: UEFI AMI

CPU Fan Connector: Yes

Cables Included: SATA

Certification: - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Chassis Intrusion Connector: Yes

Compatible Processor Series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Component For: PC

DVI-D Ports Quantity: 0

Depth: 201 mm

DisplayPort Version: 1.4

DisplayPorts Quantity: 1

ECC сompatibility: Non-ECC

EPS Power Connector (8-pin): Yes

Ethernet LAN: Yes

Ethernet Interface Type: Gigabit Ethernet

Front Panel Connector: Yes

HDCP: Yes

HDMI Ports Quantity: 1

LAN Controller: Realtek RTL8111H

Line-in: Yes

MB-Format: micro-ATX

MB-Socket: 1700

Maximum Internal Memory: 64 GB

Maximum Number Of SMP Processors: 1

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Microphone In: Yes

Motherboard Chipset: Intel B760

Motherboard Chipset Family: Intel

Motherboard Form Factor: micro ATX

Number Of M.2 (M) Slots: 1

Number Of SATA III Connectors: 4

Number Of Memory Slots: 2

Onboard-CPU: No

PCI: 0

PCI Express X1 (Gen 3.x) Slots: 2

PCI Express X16 (Gen 4.x) Slots: 1

PCI-Ex1: 1

PCI-Ex16: 2

PS/2 Ports Quantity: 1

Parallel Processing Technology Support: Not supported

Processor Manufacturer: Intel

Processor Socket: LGA 1700

RAID Levels: 0, 1, 5, 10

RAID Support: Yes

RAM-Slots: 2

Serial-or-Paralel: No/No

Supported Memory Clock Speeds: 3200,4400,5333 MHz

Supported Memory Types: DDR4-SDRAM

Supported Storage Drive Interfaces: M.2, SATA III

TPM Connector: Yes

USB 2.0 Connectors: 3

USB 2.0 Ports Quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 0

USB3: 4-8

Unbuffered Memory: Yes

VGA (D-Sub) Ports Quantity: 1

Video-Connection: HDMI/DP

Width: 244 mm

Windows Operating Systems Supported: Windows 10 Education x64, Windows 11 x64

Bluetooth: Nu

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: Micro-ATX

Gaming: Nu

HDMI: Da

Memorie Maxima: 64 GB

Model Chipset: B760

Numar Sloturi Memorie: 2

RJ-45 LAN: 1

Sloturi M.2: 2

Soclu Procesor: Socket 1700

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR4

Tip Slot Interfata Grafica: PCIe 4.0 x16

USB Type C: Da

Wireless: Nu
