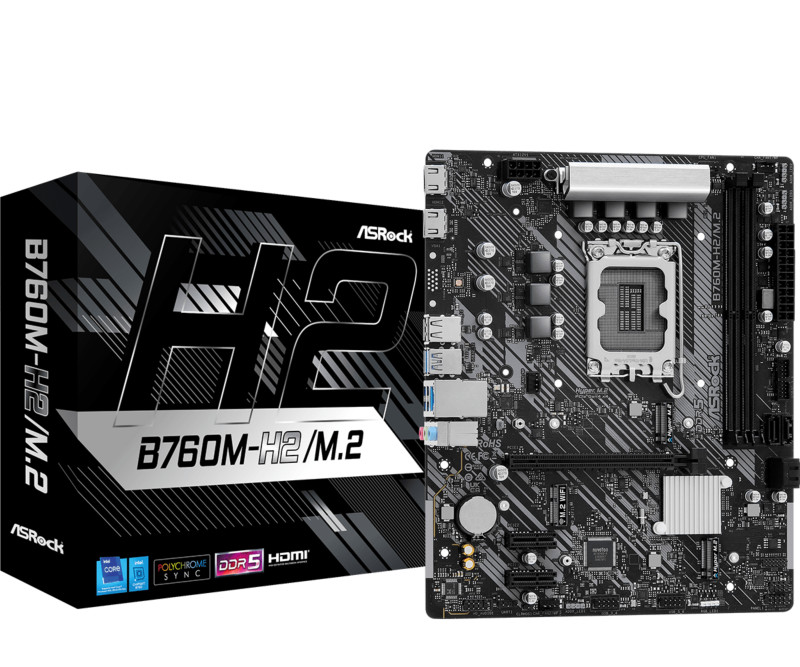

Placa de baza ASRock B760M-H2/M.2, LGA 1700, DDR5, Micro-ATX

ATX Power Connector (24-pin): Yes

Audio Chip: Realtek ALC897

Audio Output Channels: 7.1 channels

BIOS Memory Size: 128 Mbit

BIOS Type: UEFI AMI

CPU Fan Connector: Yes

Cables Included: SATA

Certification: - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Chassis Intrusion Connector: Yes

Compatible Processor Series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Component For: PC

DVI-D Ports Quantity: 0

Depth: 201 mm

ECC сompatibility: Non-ECC

EPS Power Connector (8-pin): Yes

Ethernet LAN: Yes

Ethernet LAN (RJ-45) Ports: 1

Ethernet Interface Type: 2.5 Gigabit Ethernet

Front Panel Connector: Yes

HDCP: Yes

HDMI Ports Quantity: 2

HDMI Version: 2.1

Line-in: Yes

MB-Format: micro-ATX

MB-Socket: 1700

Maximum Internal Memory: 128 GB

Maximum Internal Memory Supported By Processor: 128 GB

Maximum Number Of SMP Processors: 1

Memory Channels: Dual-channel

Memory Slots Type: DIMM

Microphone In: Yes

Motherboard Chipset: Intel B760

Motherboard Chipset Family: Intel

Motherboard Form Factor: micro ATX

Number Of HDDs Supported: 6

Number Of M.2 (M) Slots: 2

Number Of SATA III Connectors: 4

Number Of Memory Slots: 2

Number Of Storage Drives Supported: 4

Onboard-CPU: No

PCI: 0

PCI Express X1 (Gen 3.x) Slots: 2

PCI Express X16 (Gen 4.x) Slots: 1

PCI-Ex1: 2

PCI-Ex16: 1

PS/2 Ports Quantity: 1

Parallel Processing Technology Support: Not supported

Processor Manufacturer: Intel

Processor Socket: LGA 1700

RAID Levels: 0, 1, 5, 10

RAID Support: Yes

RAM-Slots: 2

Serial-or-Paralel: No/No

Supported Memory Clock Speed (max): 7200 MHz

Supported Memory Clock Speeds: 5600,6800,7200 MHz

Supported Memory Types: DDR5-SDRAM

Supported Processor Sockets: LGA 1700

Supported Storage Drive Interfaces: M.2, SATA III

TPM Connector: Yes

Total Number Of SATA Connectors: 4

USB 2.0 Connectors: 4

USB 2.0 Ports Quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Connectors: 0

USB3: 4-8

Unbuffered Memory: Yes

VGA (D-Sub) Ports Quantity: 0

Video-Connection: HDMI/DP

Width: 244 mm

Windows Operating Systems Supported: Windows 10 x64, Windows 11 x64

Bluetooth: Nu

Canale Audio: 7.1

Chipset Audio Integrat: Realtek

Format: Micro-ATX

Gaming: Nu

HDMI: Nu

Memorie Maxima: 128 GB

Model Chipset: B760

Numar Sloturi Memorie: 2

RJ-45 LAN: 1

Sloturi M.2: 2

Soclu Procesor: Socket 1700

Thunderbolt: Nu

Tibru: 0

Tip Memorie: DDR5

Tip Slot Interfata Grafica: PCIe 4.0 x16

USB Type C: N/A

Wireless: Nu
